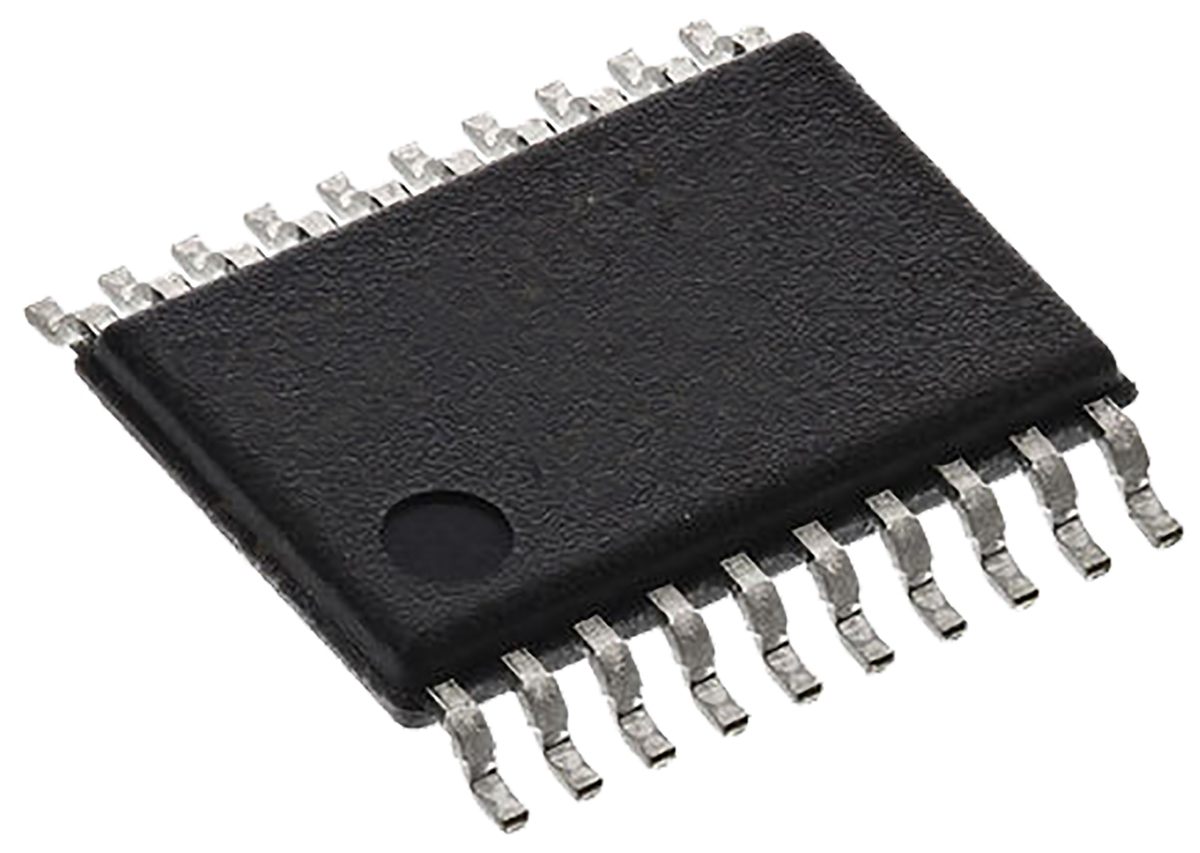

Analog Devices ADG3123BRUZ, Voltage Level Shifter, 20-Pin TSSOP

ADG3123BRUZ Analog Devices , Voltage Level Shifter, 20-Pin TSSOP
ADG3123BRUZ
Analog Devices

Product Information

Maximum Low Level Output Current:
10mA
Dimensions:
6.5 x 4.4 x 1.05mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
80 ns@ 27 V
Minimum Operating Supply Voltage:
0 V, 10.8 V
Logic Function:
Voltage Level Translator
Package Type:
TSSOP
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
-24.2 V, 35 V
Maximum Operating Temperature:
+85 °C
Pin Count:
20
Maximum High Level Output Current:
-10mA
RoHs Compliant
Checking for live stock

This is Voltage Level Shifter 20-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is ADG3123BRUZ. The given dimensions of the product include 6.5 x 4.4 x 1.05mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c.

pdf icon
ADG3123 8-Channel CMOS Logic to High Voltage Level Translator Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
