Dimensions:
3 x 3 x 0.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
470ps
Minimum Operating Supply Voltage:
3 V
Logic Function:
Translator
Output Type:
LVDS
Package Type:
QFN
Logic Family:
CML, LVCMOS, LVPECL, LVTTL
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Translation:
CML/LVCMOS/LVPECL/LVTTL to LVDS
Maximum Operating Temperature:
+85 °C
Pin Count:
16
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Differential - Input:Output:
Yes/Yes
Operating Temperature:
-40°C ~ 85°C

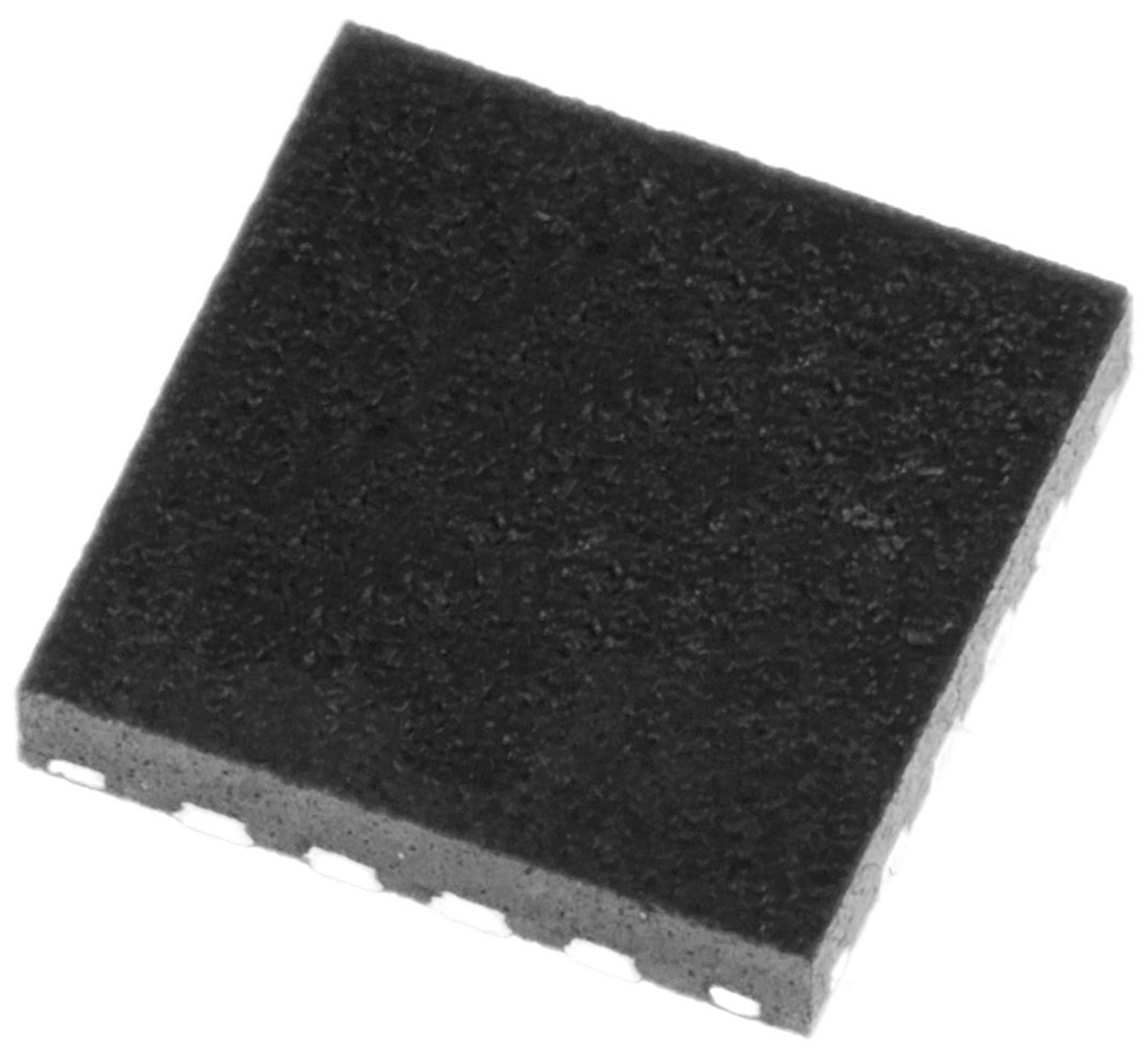

Package / Case:
16-VFQFN Exposed Pad
Input:
CML, LVCMOS, LVDS, LVPECL, LVTTL
Type:
Fanout Buffer (Distribution), Translator
Ratio - Input:Output:
1:2
REACH Status:
REACH Unaffected
Frequency - Max:
2 GHz
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Output:
LVDS
standardLeadTime:
28 Weeks
Number of Circuits:
1
Mounting Type:
Surface Mount
Series:
AnyLevel™ ECLinPS MAX™
Supplier Device Package:
16-QFN (3x3)
Voltage - Supply:
3V ~ 3.6V
Base Product Number:
NB6N11
ECCN:
EAR99
