Dimensions:
1.35 x 2.2 x 1mm
Direction Type:
Bi-Directional
Capacitance:
3.5pF
Height:
1mm
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
3.7A
Minimum Breakdown Voltage:
28.5V
ESD Voltage:
30kV
Maximum Reverse Leakage Current:
50nA

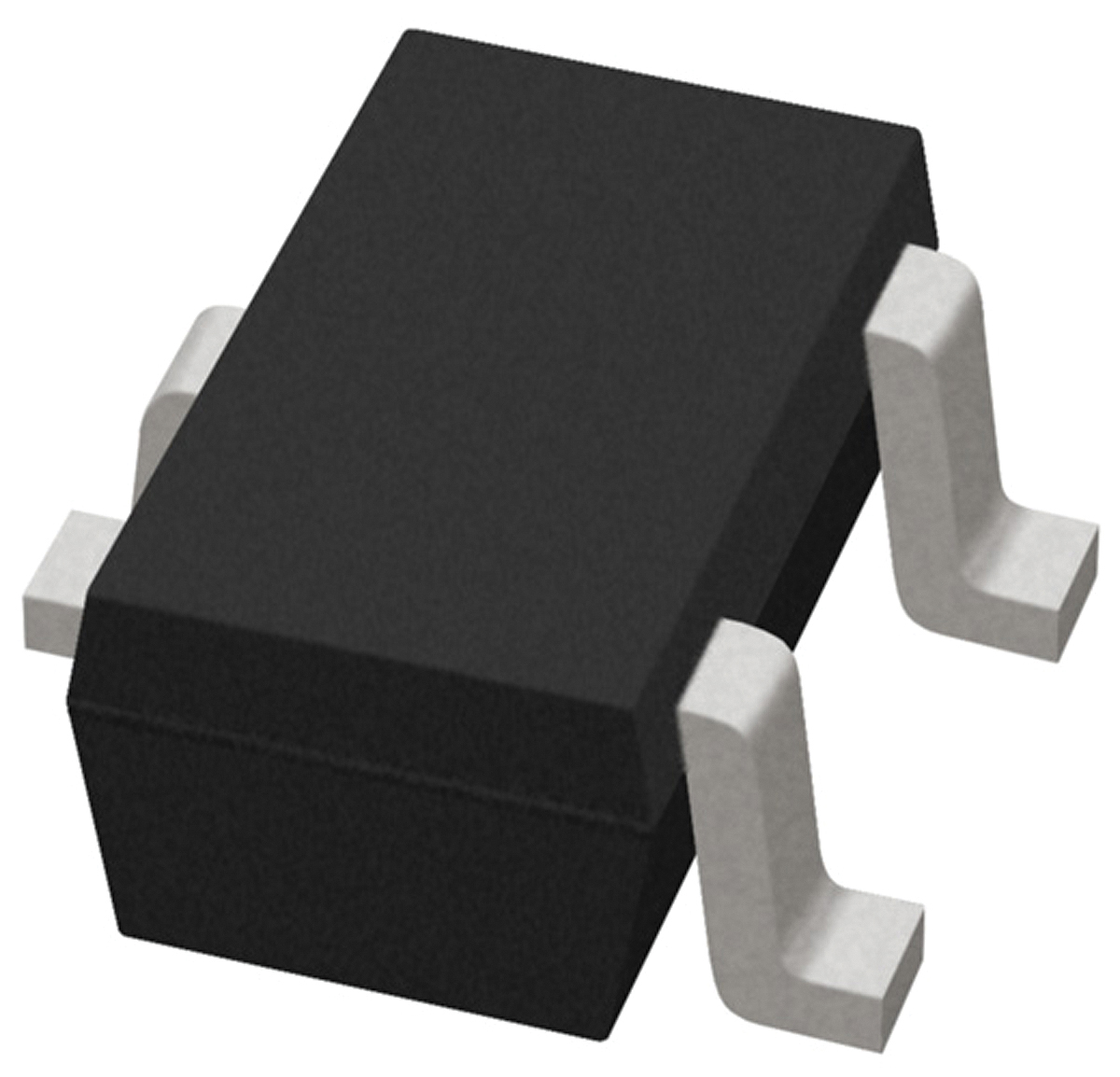

Package Type:
SOT-323 (SC-70)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+175 °C
ESD Protection:
Yes
Length:
1.35mm
Pin Count:
3
Peak Pulse Power Dissipation:
250W
Maximum Reverse Stand-off Voltage:
26.5V
Mounting Type:
Surface Mount
Width:
2.2mm
Maximum Clamping Voltage:
44V
Working Voltage:
26.5V
Minimum Operating Temperature:
-55 °C
Voltage - Clamping (Max) @ Ipp:
44V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
SC-70, SOT-323
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
28.5V
Applications:
Automotive
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
standardLeadTime:
45 Weeks
Current - Peak Pulse (10/1000µs):
3A (8/20µs)
Voltage - Reverse Standoff (Typ):
26.5V (Max)
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q101, ESDL, TRANSIL™
Supplier Device Package:
SOT-323-3
Capacitance @ Frequency:
3pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
250W
Base Product Number:
ESDLIN03
ECCN:
EAR99
