Maximum Peak Pulse Current:
5A
Maximum Reverse Stand-off Voltage:
15V
Dimensions:
1.8 x 1.45 x 1.07mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
17.1V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
160W
Height:
1.07mm
Width:
1.45mm
Length:
1.8mm

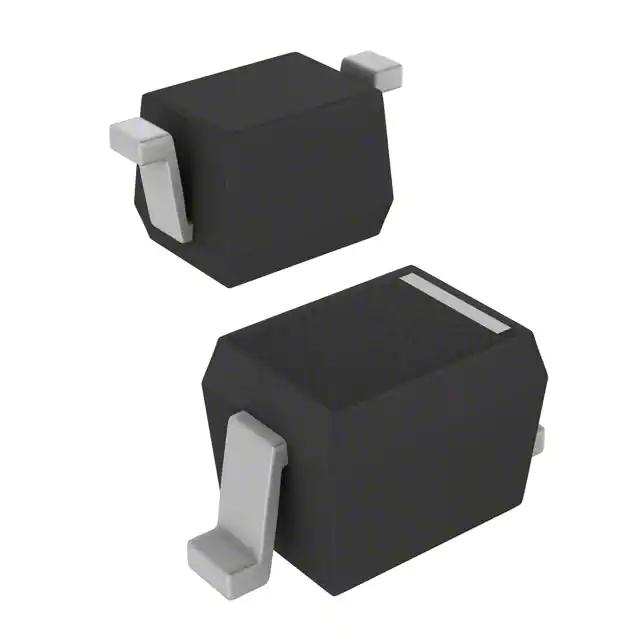

Package Type:
SOD-323
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
50nA
Maximum Clamping Voltage:
35V
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
Voltage - Clamping (Max) @ Ipp:
35V, 50V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
SC-76, SOD-323
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
17.1V, 25.4V
Applications:
Automotive
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
standardLeadTime:
99 Weeks
Current - Peak Pulse (10/1000µs):
5A, 3A (8/20µs)
Voltage - Reverse Standoff (Typ):
15V, 24V
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q101, TRANSIL™
Supplier Device Package:
SOD-323
Capacitance @ Frequency:
16pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
160W
Base Product Number:
ESDLIN1524
ECCN:
EAR99
