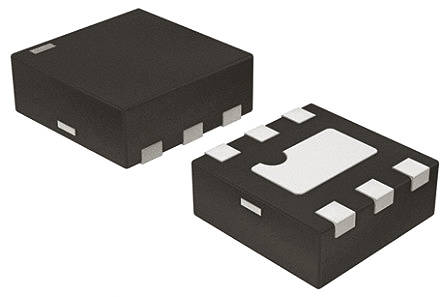

Vishay GMF05LC-HSF-GS08, Quint Bi-Directional ESD Protection Diode, 70W, 6-Pin LLP75

GMF05LC-HSF-GS08 Vishay , Quint Bi-Directional ESD Protection Diode, 70W, 6-Pin LLP75
Vishay

Product Information

Maximum Peak Pulse Current:
5A
Maximum Reverse Stand-off Voltage:
5V
Dimensions:
1.65 x 1.65 x 0.6mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
6V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
70W
Height:
0.6mm
Width:
1.65mm
Length:
1.65mm
Package Type:
LLP75
Number of Elements per Chip:
5
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
100nA
Maximum Clamping Voltage:
12.5V
Diode Configuration:
Common Anode
Pin Count:
6
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Quint Bi-Directional ESD Protection Diode 70W 6-Pin LLP75 manufactured by Vishay. The manufacturer part number is GMF05LC-HSF-GS08. The given dimensions of the product include 1.65 x 1.65 x 0.6mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. In addition, the height is 0.6mm. Furthermore, the product is 1.65mm wide. Its accurate length is 1.65mm. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a common anode configuration.

pdf icon
GMF05LC-HSF, 5-Line ESD Protection Diode Array in LLP75-6L(Technical Reference)
