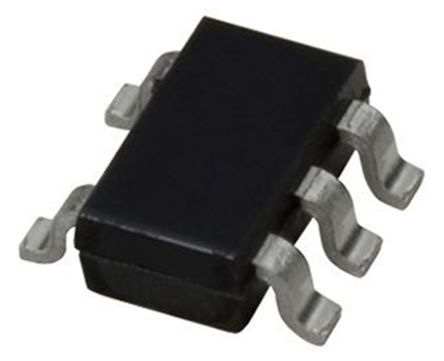

Nexperia PESD5V0L4UG,115, Quad Uni-Directional TVS Diode, 30W, 5-Pin UMT

PESD5V0L4UG-115 Nexperia PESD5V0L4UG,115, Quad Uni-Directional TVS Diode, 30W, 5-Pin UMT
PESD5V0L4UG-115 Nexperia PESD5V0L4UG,115, Quad Uni-Directional TVS Diode, 30W, 5-Pin UMT
Nexperia

Product Information

Maximum Peak Pulse Current:
2.5A
Maximum Reverse Stand-off Voltage:
5V
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
6.46V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
30W
Height:
1mm
Width:
1.35mm
Length:
2.2mm
Package Type:
UMT
Number of Elements per Chip:
4
Minimum Operating Temperature:
-65 °C
Maximum Reverse Leakage Current:
25nA
Maximum Clamping Voltage:
13V
Diode Configuration:
Common Anode
Pin Count:
5
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Quad Uni-Directional TVS Diode 30W 5-Pin UMT manufactured by Nexperia. The manufacturer part number is PESD5V0L4UG,115. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. It has a maximum operating temperature of +150 °c. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.2mm. Whereas, the minimum operating temperature of the product is -65 °c. The diode features a common anode configuration.

pdf icon
Bi-Direct ESD protect diode,PESDxxL4U(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
