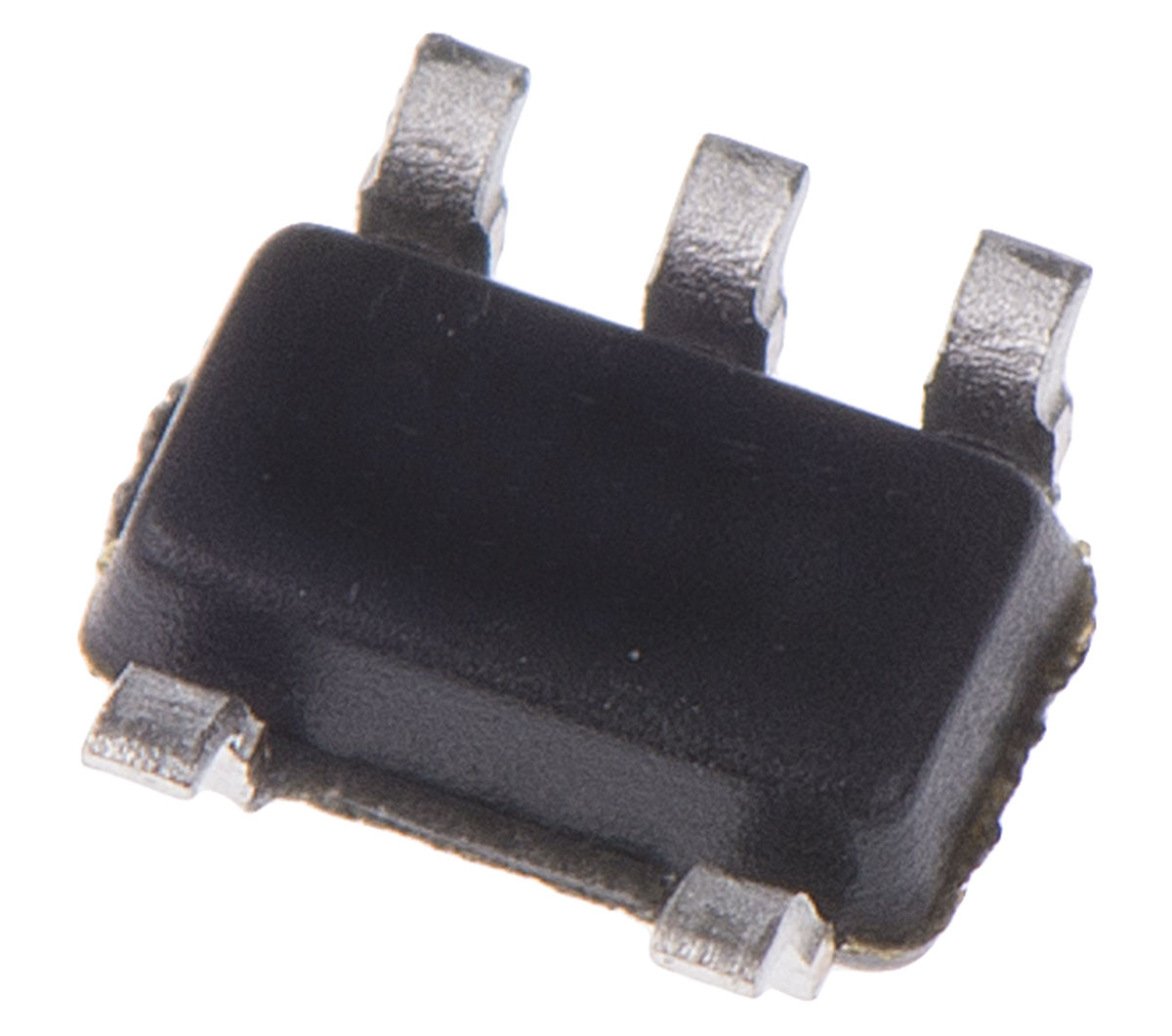

Littelfuse SP0504BAHTG, Quad Uni-Directional TVS Diode Array, 0.22W, 5-Pin SOT-23

SP0504BAHTG Littelfuse , Quad Uni-Directional TVS Diode Array, 0.22W, 5-Pin SOT-23
SP0504BAHTG
Littelfuse

Product Information

Maximum Reverse Stand-off Voltage:
5.5V
Dimensions:
3.05 x 3 x 1.3mm
Mounting Type:
Surface Mount
Capacitance:
30pF
Maximum Operating Temperature:
+85 °C
Maximum Reverse Leakage Current:
100nA
Direction Type:
Uni-Directional
Peak Pulse Power Dissipation:
0.22W
Height:
1.3mm
Width:
3mm
Length:
3.05mm
Package Type:
SOT-23
Number of Elements per Chip:
4
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
8.5V
Diode Configuration:
Array
Pin Count:
5
Test Current:
10mA
RoHs Compliant
Checking for live stock

This is Quad Uni-Directional TVS Diode Array 0.22W 5-Pin SOT-23 manufactured by Littelfuse. The manufacturer part number is SP0504BAHTG. The given dimensions of the product include 3.05 x 3 x 1.3mm. The product is available in surface mount configuration. It provides a 30pf of capacitance value. It has a maximum operating temperature of +85 °c. In addition, the height is 1.3mm. Furthermore, the product is 3mm wide. Its accurate length is 3.05mm. Whereas, the minimum operating temperature of the product is -40 °c. The diode features a array configuration.

pdf icon
TVS Diode Arrays, SP05 Series - 30pF 30kV Unidirectional TVS Array(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
