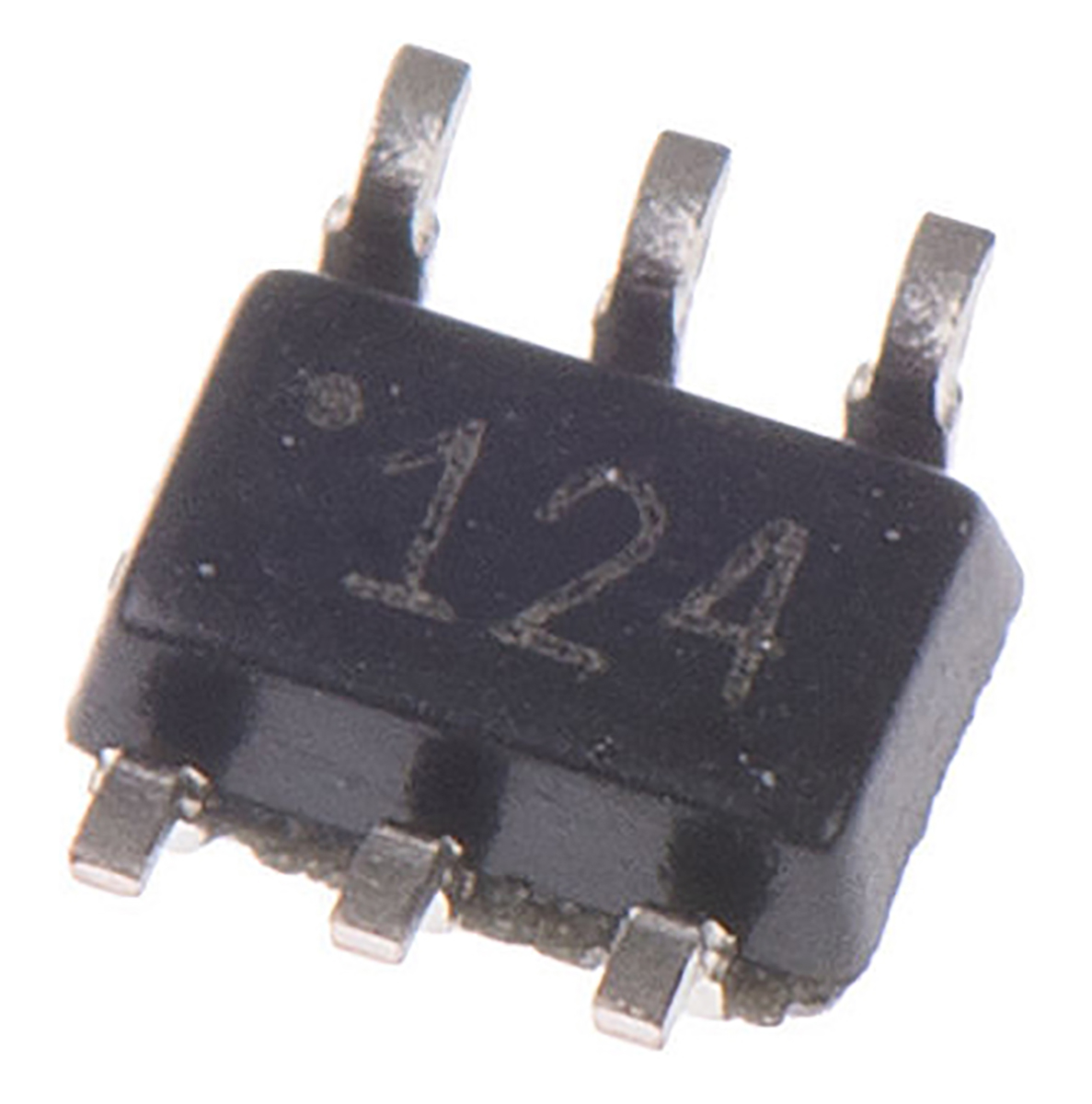

Wurth Elektronik 82400274, Quad Uni-Directional TVS Diode Array, 6-Pin SC-70

82400274 Wurth Elektronik , Quad Uni-Directional TVS Diode Array, 6-Pin SC-70
82400274
82400274 Wurth Elektronik , Quad Uni-Directional TVS Diode Array, 6-Pin SC-70
Wurth Elektronik

Product Information

Maximum Peak Pulse Current:
6A
Maximum Reverse Stand-off Voltage:
5V
Dimensions:
2 x 1.25 x 0.95mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+85 °C
Minimum Breakdown Voltage:
6V
ESD Protection:
Yes
Height:
0.95mm
Width:
1.25mm
Length:
2mm
Package Type:
SOT-363 (SC-70)
Number of Elements per Chip:
4
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
5µA
Maximum Clamping Voltage:
9V
Diode Configuration:
Complex Array
Pin Count:
6
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Quad Uni-Directional TVS Diode Array 6-Pin SC-70 manufactured by Wurth Elektronik. The manufacturer part number is 82400274. The given dimensions of the product include 2 x 1.25 x 0.95mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. In addition, the height is 0.95mm. Furthermore, the product is 1.25mm wide. Its accurate length is 2mm. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a complex array configuration.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
82400274, TVS Diode Array WE-TVS, SC70-6L(Technical Reference)
