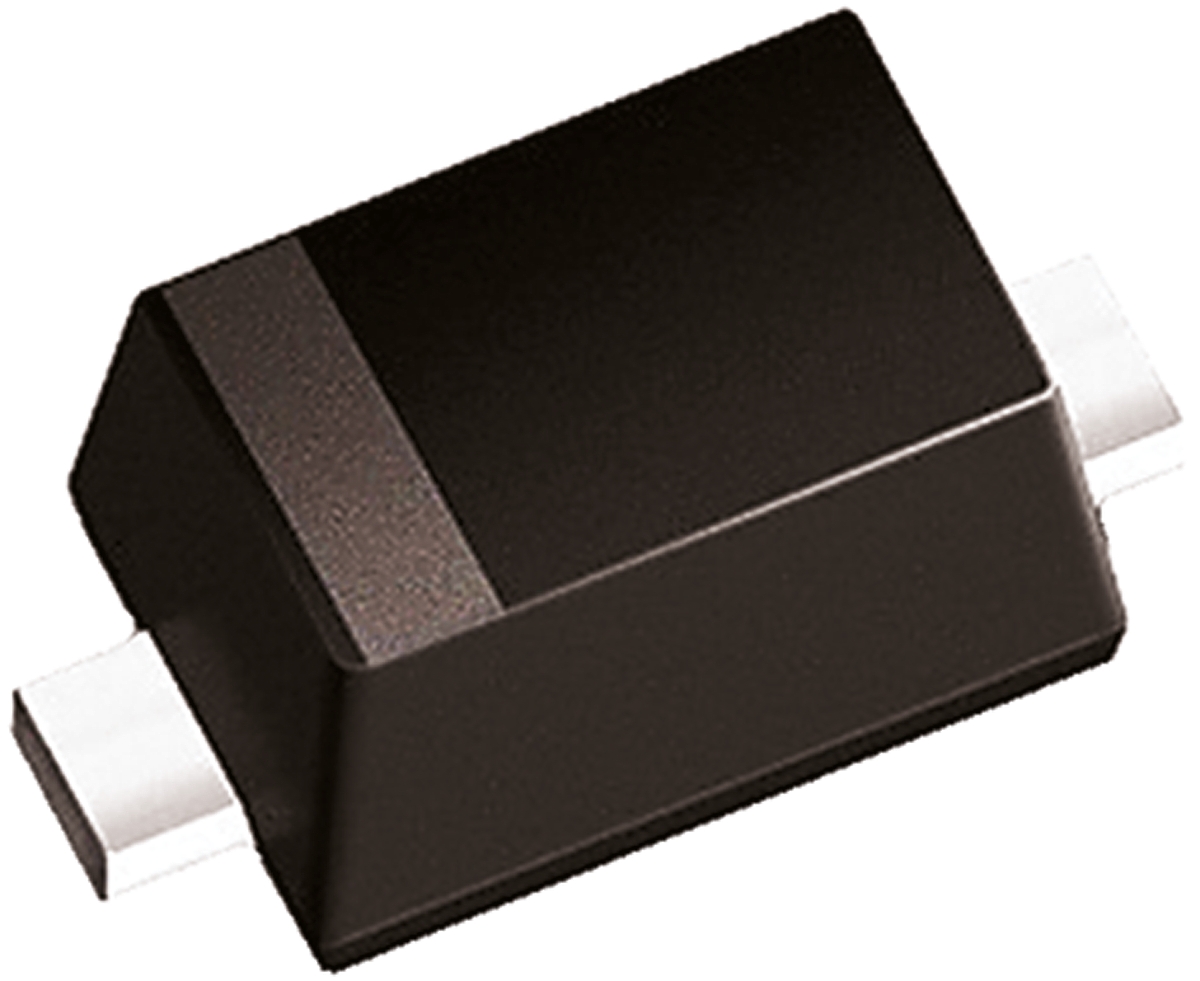

Infineon ESD5V0S1U02VH6327XTSA1, Uni-Directional ESD Protection Diode, 66W, 2-Pin SC-79

ESD5V0S1U02VH6327XTSA1 Infineon , Uni-Directional ESD Protection Diode, 66W, 2-Pin SC-79
Infineon

Product Information

Dimensions:
0.8 x 1.2 x 0.55mm
Direction Type:
Uni-Directional
Capacitance:
40pF
Maximum Clamping Voltage:
14.5V
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
5.5A
Minimum Breakdown Voltage:
5.7V
Surge Current Rating:
5.5A
Maximum Reverse Leakage Current:
100nA
Package Type:
SC-79
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
ESD Protection:
Yes
Length:
0.8mm
Pin Count:
2
Peak Pulse Power Dissipation:
66W
Maximum Reverse Stand-off Voltage:
5V
Mounting Type:
Surface Mount
Width:
1.2mm
Height:
0.55mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional ESD Protection Diode 66W 2-Pin SC-79 manufactured by Infineon. The manufacturer part number is ESD5V0S1U02VH6327XTSA1. The given dimensions of the product include 0.8 x 1.2 x 0.55mm. It provides a 40pf of capacitance value. The diode features a single configuration. It has a maximum operating temperature of +125 °c. Its accurate length is 0.8mm. The product is available in surface mount configuration. Furthermore, the product is 1.2mm wide. In addition, the height is 0.55mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
ESD5V0S1U-02V Uni-directional ESD / Transient Protection Diode Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
