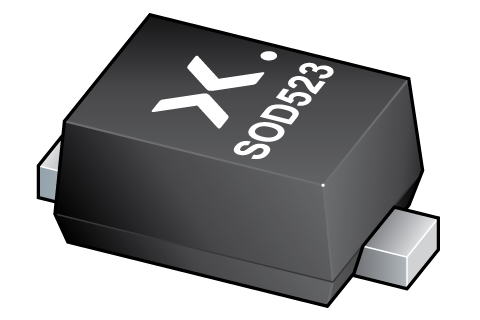

Nexperia PESD3V3L1UB,115, Uni-Directional ESD Protection Diode, 2-Pin SOD-523

PESD3V3L1UB,115 Nexperia , Uni-Directional ESD Protection Diode, 2-Pin SOD-523
PESD3V3L1UB,115 Nexperia , Uni-Directional ESD Protection Diode, 2-Pin SOD-523
Nexperia

Product Information

Width:
0.85mm
Height:
0.65mm
Length:
1.25mm
Pin Count:
2
Dimensions:
1.25 x 0.85 x 0.65mm
Capacitance:
40pF
ESD Voltage:
30kV
Package Type:
SOD-523
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
ESD Protection:
Yes
Automotive Standard:
AEC-Q101
Diode Configuration:
Single
Maximum Clamping Voltage:
11V
Minimum Breakdown Voltage:
5.3V
Maximum Peak Pulse Current:
4.5A
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
300nA
Maximum Reverse Stand-off Voltage:
3.3V
RoHs Compliant
27000 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
3000
£ 0.053
£ 159.00
6000
£ 0.050
£ 300.00
15000
£ 0.047
£ 705.00
Mfr Part No:
PESD3V3L1UB,115
Seller:
Nexperia
Origin:
Warranty:
Manufacturer
Data Code:
ET16800276
Order Today!
From: United Kingdom
Est Ship Date: 29 Jul, 2026
Est Fastest Delivery: 30 Jul, 2026

This is Uni-Directional ESD Protection Diode 2-Pin SOD-523 manufactured by Nexperia. The manufacturer part number is PESD3V3L1UB,115. Furthermore, the product is 0.85mm wide. In addition, the height is 0.65mm. Its accurate length is 1.25mm. The given dimensions of the product include 1.25 x 0.85 x 0.65mm. It provides a 40pf of capacitance value. The product is available in surface mount configuration. The diode features a single configuration. It has a maximum operating temperature of +150 °c. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
0900766b8161edab.pdf(RS)
pdf icon
0900766b81644fba.pdf(RS)
