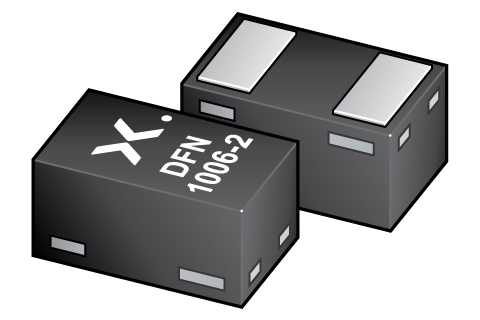

Nexperia PESD5V0F1BL,315, Dual Bi-Directional ESD Protection Diode, 2-Pin SOD-882

PESD5V0F1BL-315 Nexperia PESD5V0F1BL,315, Dual Bi-Directional ESD Protection Diode, 2-Pin SOD-882
PESD5V0F1BL-315 Nexperia PESD5V0F1BL,315, Dual Bi-Directional ESD Protection Diode, 2-Pin SOD-882
Nexperia

Product Information

Automotive Standard:
AEC-Q101
Maximum Peak Pulse Current:
2.5A
Maximum Reverse Stand-off Voltage:
5.5V
Dimensions:
1.02 x 0.62 x 0.5mm
Mounting Type:
Surface Mount
Capacitance:
0.55pF
Maximum Reverse Leakage Current:
100nA
ESD Voltage:
10kV
Minimum Breakdown Voltage:
6V
Direction Type:
Bi-Directional
Height:
0.5mm
Width:
0.62mm
Length:
1.02mm
Package Type:
SOD-882
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
15V
Maximum Operating Temperature:
+125 °C
Pin Count:
2
RoHs Compliant
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 2-Pin SOD-882 manufactured by Nexperia. The manufacturer part number is PESD5V0F1BL,315. The given dimensions of the product include 1.02 x 0.62 x 0.5mm. The product is available in surface mount configuration. It provides a 0.55pf of capacitance value. In addition, the height is 0.5mm. Furthermore, the product is 0.62mm wide. Its accurate length is 1.02mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c.
