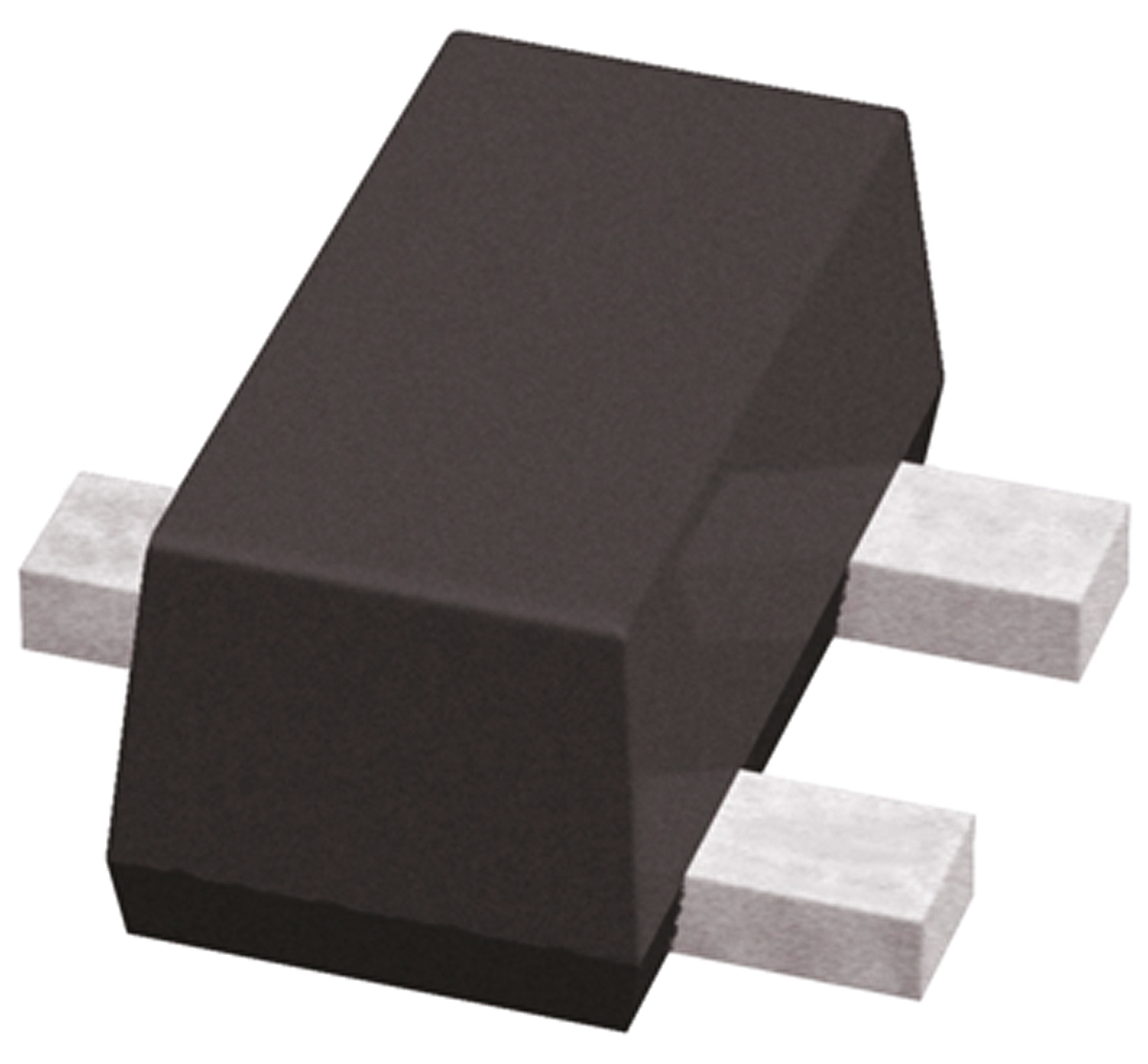

onsemi NZL5V6AXV3T1G, Dual-Element Uni-Directional ESD Protection Diode, 50W, 3-Pin SOT-523

NZL5V6AXV3T1G onsemi , Dual-Element Uni-Directional ESD Protection Diode, 50W, 3-Pin SOT-523
NZL5V6AXV3T1G onsemi , Dual-Element Uni-Directional ESD Protection Diode, 50W, 3-Pin SOT-523
Onsemi

Product Information

Width:
0.95mm
Height:
0.8mm
Length:
1.7mm
Pin Count:
3

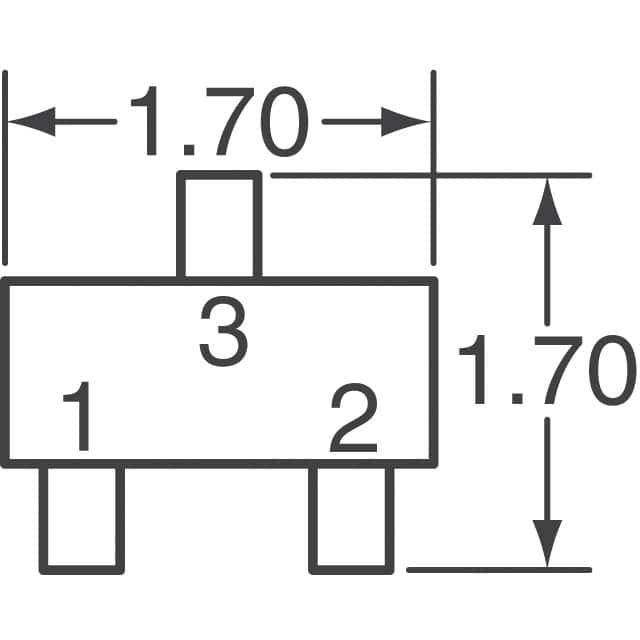

Dimensions:
1.7 x 0.95 x 0.8mm
Package Type:
SOT-523 (SC-89)
Test Current:
5mA
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
ESD Protection:
Yes
Diode Configuration:
Common Anode
Maximum Clamping Voltage:
10.1V
Minimum Breakdown Voltage:
5.32V
Maximum Peak Pulse Current:
4.8A
Number of Elements per Chip:
2
Peak Pulse Power Dissipation:
50W
Maximum Operating Temperature:
+150 °C
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
5µA
Maximum Reverse Stand-off Voltage:
3V
RoHs Compliant
Pre-order

Estimated Lead Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
Price
3000
£ 0.076
£ 228.00
Mfr Part No:
NZL5V6AXV3T1G
Seller:
Onsemi
Origin:
Warranty:
Manufacturer
Data Code:
ET21465817
Order Today!
From: United Kingdom

This is onsemi Dual-Element Uni-Directional ESD Protection Diode 50W 3-Pin SOT-523 manufactured by Onsemi. The manufacturer part number is NZL5V6AXV3T1G. Furthermore, the product is 0.95mm wide. In addition, the height is 0.8mm. Its accurate length is 1.7mm. The given dimensions of the product include 1.7 x 0.95 x 0.8mm. The product is available in surface mount configuration. The diode features a common anode configuration. It has a maximum operating temperature of +150 °c. Whereas, the minimum operating temperature of the product is -55 °c.
