Dimensions:
1.7 x 0.95 x 0.8mm
Direction Type:
Uni-Directional
Capacitance:
45pF
Maximum Clamping Voltage:
11.9V
Diode Configuration:
Common Anode
Test Current:
5mA
Maximum Peak Pulse Current:
6.7A
Minimum Breakdown Voltage:
6.46V
Maximum Reverse Leakage Current:
1µA

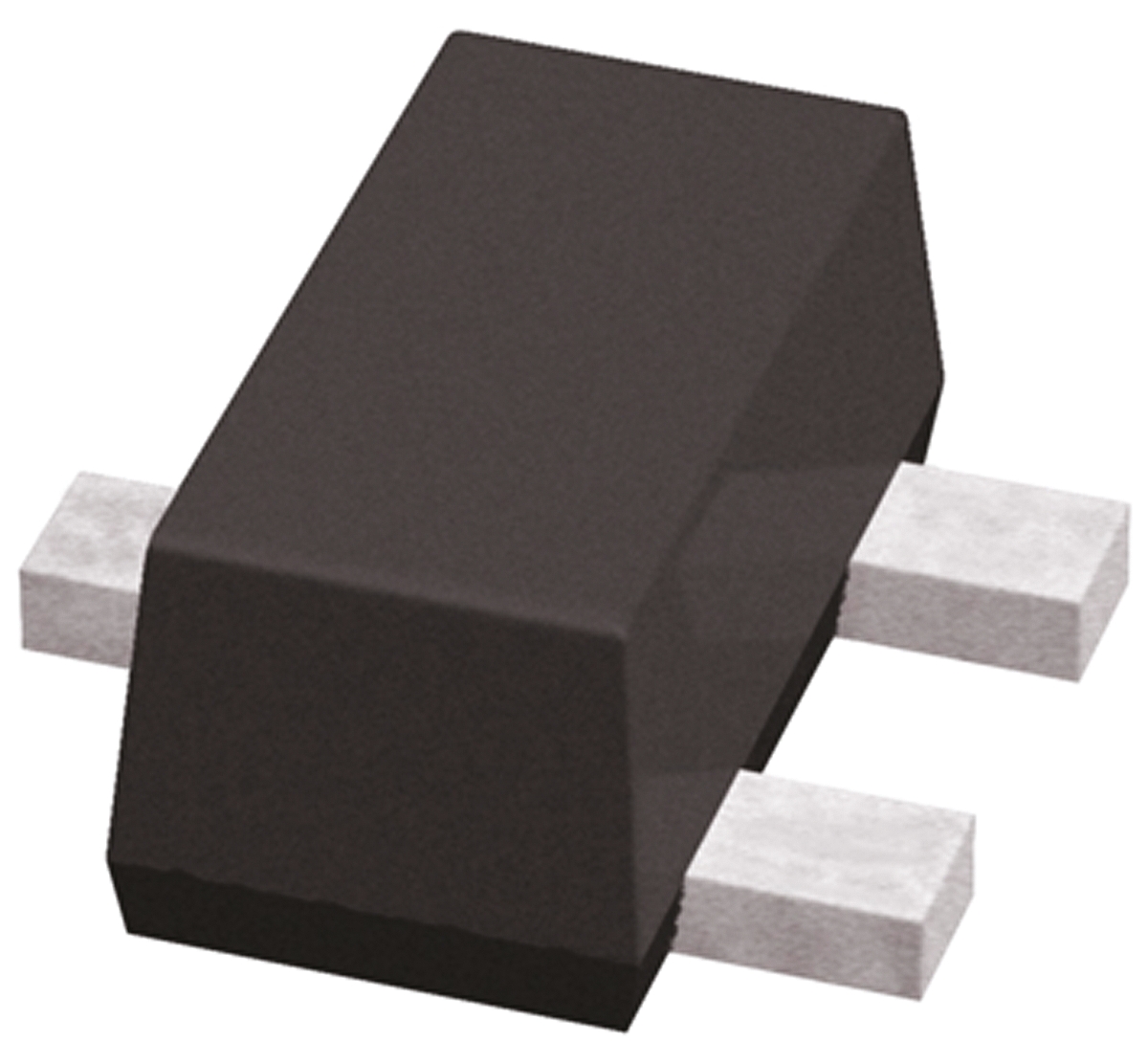

Package Type:
SOT-523 (SC-89)
Number of Elements per Chip:
2
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
1.7mm
Pin Count:
3
Peak Pulse Power Dissipation:
73W
Maximum Reverse Stand-off Voltage:
4.5V
Mounting Type:
Surface Mount
Width:
0.95mm
Height:
0.8mm
Minimum Operating Temperature:
-55 °C
Voltage - Clamping (Max) @ Ipp:
7.9V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
SC-89, SOT-490
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
6.46V
Applications:
Automotive
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
2
standardLeadTime:
30 Weeks
Current - Peak Pulse (10/1000µs):
11.9A (8/20µs)
Voltage - Reverse Standoff (Typ):
4.5V
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q101
Supplier Device Package:
SC-89-3
Capacitance @ Frequency:
-
Power Line Protection:
No
Power - Peak Pulse:
73W
Base Product Number:
NZL6V8
ECCN:
EAR99
