Dimensions:
0.85 x 0.65 x 0.4mm

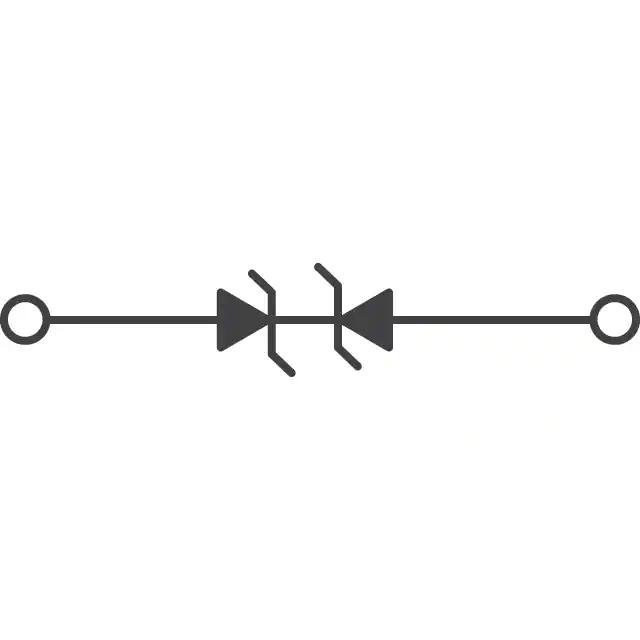

Direction Type:
Bi-Directional
Capacitance:
15pF
Maximum Clamping Voltage:
12.5V
Diode Configuration:
Single
Automotive Standard:
AEC-Q101
Test Current:
1mA
Maximum Peak Pulse Current:
12.5A
Minimum Breakdown Voltage:
5.8V
Maximum Reverse Leakage Current:
100nA
Package Type:
SOD-923
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
0.85mm
Pin Count:
2
Peak Pulse Power Dissipation:
0.3W
Maximum Reverse Stand-off Voltage:
5V
Mounting Type:
Surface Mount
Width:
0.65mm
Height:
0.4mm
Minimum Operating Temperature:
-55 °C
Voltage - Clamping (Max) @ Ipp:
-
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
SOD-923
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
5.8V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Bidirectional Channels:
1
standardLeadTime:
35 Weeks
Current - Peak Pulse (10/1000µs):
-
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOD-923
Capacitance @ Frequency:
15pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
-
Base Product Number:
ESD9B5.0
ECCN:
EAR99
