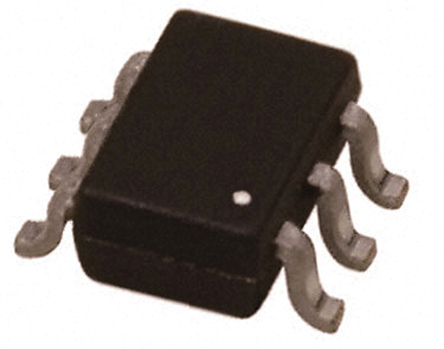

onsemi NSP4201MR6T1G, Uni-Directional ESD Protection Array, 500W, 6-Pin TSOP

NSP4201MR6T1G onsemi , Uni-Directional ESD Protection Array, 500W, 6-Pin TSOP
NSP4201MR6T1G onsemi , Uni-Directional ESD Protection Array, 500W, 6-Pin TSOP
Onsemi

Product Information

Width:
1.7mm
Height:
1mm
Length:
3.1mm
Pin Count:
6
Dimensions:
3.1 x 1.7 x 1mm
Capacitance:
5pF
Package Type:
TSOP
Test Current:
1mA
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
ESD Protection:
Yes
Working Voltage:
5V
Automotive Standard:
AEC-Q101
Diode Configuration:
Single
Maximum Clamping Voltage:
12V
Minimum Breakdown Voltage:
6V
Maximum Peak Pulse Current:
25A
Number of Elements per Chip:
1
Peak Pulse Power Dissipation:
500W
Maximum Operating Temperature:
+125 °C
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
1µA
RoHs Compliant
3000 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
3000
£ 0.14
£ 420.00
Mfr Part No:
NSP4201MR6T1G
Seller:
Onsemi
Origin:
Warranty:
Manufacturer
Data Code:
ET21473017
Order Today!
From: United Kingdom
Est Ship Date: 16 Jul, 2026
Est Fastest Delivery: 17 Jul, 2026

This is onsemi Uni-Directional ESD Protection Array 500W 6-Pin TSOP manufactured by Onsemi. The manufacturer part number is NSP4201MR6T1G. Furthermore, the product is 1.7mm wide. In addition, the height is 1mm. Its accurate length is 3.1mm. The given dimensions of the product include 3.1 x 1.7 x 1mm. It provides a 5pf of capacitance value. The product is available in surface mount configuration. The diode features a single configuration. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
0900766b81628511.pdf(RS)
pdf icon
0900766b81644fba.pdf(RS)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search NSP4201MR6T1G on website for other similar products.
We accept all major payment methods for all products including ET21473017. Please check your shopping cart at the time of order.
You can order Onsemi brand products with NSP4201MR6T1G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi NSP4201MR6T1G, Uni-Directional ESD Protection Array, 500W, 6-Pin TSOP. You can also check on our website or by contacting our customer support team for further order details on onsemi NSP4201MR6T1G, Uni-Directional ESD Protection Array, 500W, 6-Pin TSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21473017 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number NSP4201MR6T1G.
Yes. You can also search NSP4201MR6T1G on website for other similar products.
Yes. We ship NSP4201MR6T1G Internationally to many countries around the world.
