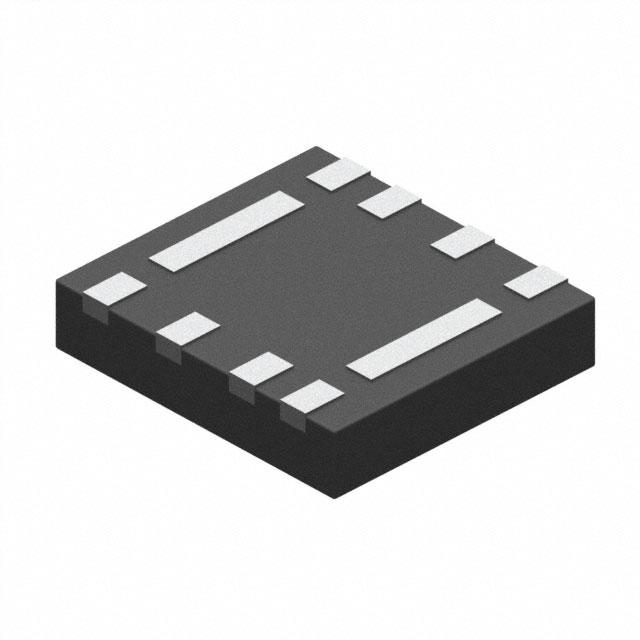

This is Quad-Element Uni-Directional ESD Protection Array 8-Pin UDFN manufactured by onsemi. The manufacturer part number is NSP8814MUTAG. The given dimensions of the product include 2.2 x 2 x 0.5mm. The product is available in surface mount configuration. It provides a 5pf of capacitance value. It has a maximum operating temperature of +125 °c. In addition, the height is 0.5mm. Furthermore, the product is 2mm wide. Its accurate length is 2.2mm. Whereas, the minimum operating temperature of the product is -55 °c. The diode features a array configuration. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 3.2v. The product is widely employed in ethernet. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. The peak pulse of the product is given as 35a (8/20µs). Provide with the typical reverse standoff voltage of 3v (max). 8-udfn (2.2x2) is the supplier device package value. It has a nominal capacitance and frequency values of 5pf @ 1mhz (max). Power Line Protection: no. Moreover, it corresponds to nsp8814, a base product number of the product. The product is designated with the ear99 code number
For more information please check the datasheets.
