Category:
Power MOSFET
Dimensions:
10.67 x 11.33 x 4.83mm
Maximum Continuous Drain Current:
14 A
Transistor Material:
Si
Width:
11.33mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
300 V

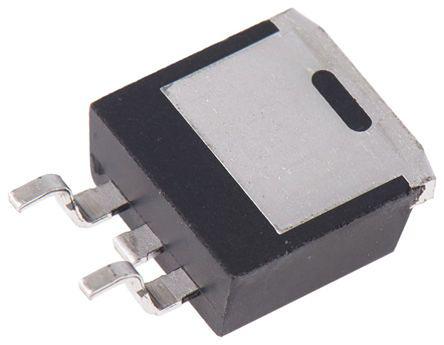

Package Type:
TO-263AB
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
18 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
815 pF@ 25 V
Length:
10.67mm
Pin Count:
3
Typical Turn-Off Delay Time:
30 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
140 W
Series:
UniFET
Maximum Gate Source Voltage:
±30 V
Height:
4.83mm
Typical Turn-On Delay Time:
20 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
290 mΩ
