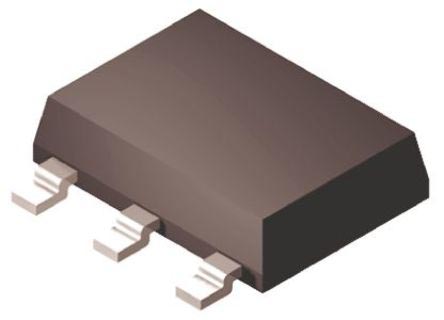

Microchip MCP1790-3302E/DB, LDO Regulator, 70mA, 3.3 V, ±2.5%, 6 → 30 Vin 3+Tab-Pin, SOT-223

MCP1790-3302E-DB Microchip MCP1790-3302E/DB, LDO Regulator, 70mA, 3.3 V, ±2.5%, 6 → 30 Vin 3+Tab-Pin, SOT-223
Microchip

Product Information

Polarity:
Positive
Dimensions:
6.5 x 3.5 x 1.6mm
Regulator Type:
Low Dropout Voltage
Width:
3.5mm
Accuracy:
±2.5%
Load Regulation:
±0.2 %
Output Type:
Fixed
Package Type:
SOT-223
Maximum Operating Temperature:
+125 °C
Quiescent Current:
0.07mA
Number of Outputs:
1
Line Regulation:
±0.0002 %/V
Length:
6.5mm
Pin Count:
3+Tab
Mounting Type:
Surface Mount
Height:
1.6mm
Output Voltage:
3.3 V
Minimum Operating Temperature:
-40 °C
Maximum Output Current:
70mA
Maximum Input Voltage:
30 V
Minimum Input Voltage:
6 V
RoHs Compliant
Checking for live stock

This is LDO Regulator 70mA 3.3 V ±2.5% 6 → 30 Vin 3+Tab-Pin SOT-223 manufactured by Microchip. The manufacturer part number is MCP1790-3302E/DB. The given dimensions of the product include 6.5 x 3.5 x 1.6mm. Furthermore, the product is 3.5mm wide. It provides high accuracy of ±2.5%. Load Regulation - ±0.2 %. Furthermore, it has afixed output. It has a maximum operating temperature of +125 °c. Additionally, the product is supplied with 1 outputs. Has a line regulation of ±0.0002 %/v. Its accurate length is 6.5mm. The product is available in surface mount configuration. In addition, the height is 1.6mm. Whereas, the minimum operating temperature of the product is -40 °c.
