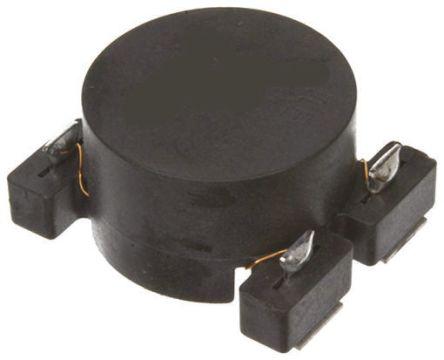

Wurth WE-PD2 Series Type 1054 Unshielded Wire-wound SMD Inductor 680 μH ±10% 360mA Idc

Enrgtech Part No: ET13961983
|
Manufacturer Part No:
744776268
|
Manufacturer: Wurth Elektronik

(0)

Product Information

Maximum DC Resistance:

2.25Ω

Dimensions:

10 x 9 x 5.4mm

Shielded:

Series:

WE-PD2

Minimum Operating Temperature:

-40°C

Length:

10mm

Height:

5.4mm

Maximum DC Current:

360mA

Depth:

9mm

Inductance:

680 μH

Maximum Self Resonant Frequency:

2.5MHz

Maximum Operating Temperature:

+125°C

Checking for live stock

This is Wurth WE-PD2 Series Type 1054 Unshielded Wire-wound SMD Inductor 680 μH ±10% 360mA Idc manufactured by Wurth Elektronik. The manufacturer part number is 744776268. The given dimensions of the product include 10 x 9 x 5.4mm. The product we-pd2, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. Its accurate length is 10mm. In addition, the height is 5.4mm. The product comes in 9mm depth. The product has a 680 μh inductance value. It has a maximum operating temperature of +125°c. It features ±10% of tolerance value.

8 Design Tips for Power Inductors from Wurth Elektronik - Application Note(Technical Reference)

Negative Input Resistance of Switching Regulators - Application Note(Technical Reference)

EMC Filter for DC/DC Switching Controller Optimised - Application Note(Technical Reference)

Direct Current Losses at the Output Filter of a Switching Controller - ANP009B Application Note(Technical Reference)

Influence of Control Loop by an Output Filter - ANP006B Application Note(Technical Reference)

Inductor SMD shielded WE-PD 21054 680uH Data Sheet(Technical Reference)
