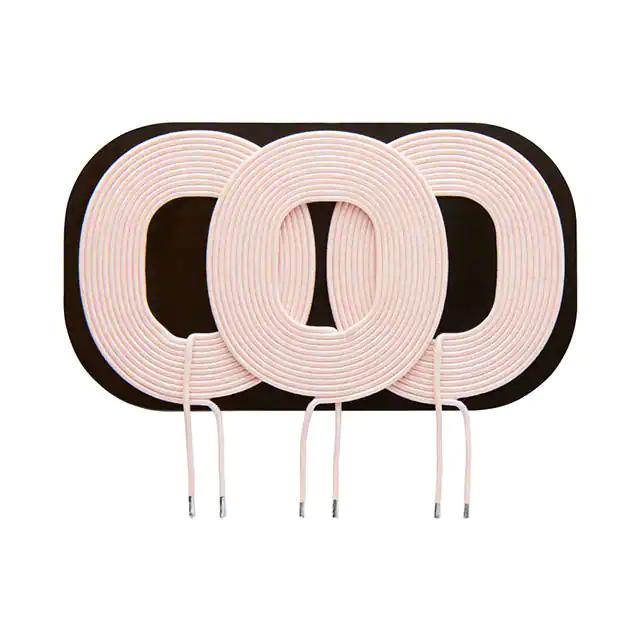

Signal Transformer WTM9R8K-A9

WTM9R8K-A9 Signal Transformer
WTM9R8K-A9
Signal Transformer

Product Information

HTSUS:
8504.50.8000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-20°C ~ 85°C
Tolerance:
±10%
Function:
Transmitter
DC Resistance (DCR):
60mOhm Max, 65mOhm Max
Type:
3 Coil, 1 Layer
REACH Status:
REACH Unaffected
Inductance:
9.8µH, 10.2µH, 9.8µH
Package:
Box
Size / Dimension:
3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm)
Current - Saturation (Isat):
10A
standardLeadTime:
20 Weeks
Current Rating (Amps):
8A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Series:
WCC
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Signal Transformer. The manufacturer part number is WTM9R8K-A9. It is assigned with possible HTSUS value of 8504.50.8000. The product is rohs3 compliant. The product has -20°c ~ 85°c operating temperature range. It features ±10% of tolerance value. It performs basic function of transmitter. It allows DC resistance of 60mohm max, 65mohm max. It comes in 3 coil, 1 layer configuration. In addition, it is reach unaffected. The product has a 9.8µh, 10.2µh, 9.8µh inductance value. It is shipped in box. The product's diameters include 3.98" l x 2.24" w x 0.16" h (101.0mm x 57.0mm x 4.0mm). It has a 10a saturation current. It has a long 20 weeks standard lead time. Additionally, the product's output is 8a Its typical moisture sensitivity level is 1 (unlimited). The product wcc, is a highly preferred choice for users. The product is designated with the ear99 code number

pdf icon
WCC Series Datasheet(Datasheets)
pdf icon
Signal Transformer REACH(Environmental Information)
pdf icon
RoHS EU Declaration Signal Transformer(Environmental Information)
