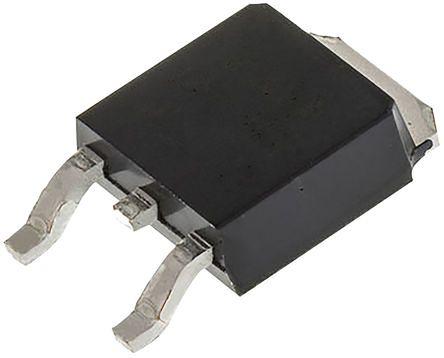

Renesas Electronics 2SD1899-Z-E1-AZ NPN Transistor, 3 A, 60 V, 3-Pin DPAK

2SD1899-Z-E1-AZ Renesas Electronics NPN Transistor, 3 A, 60 V, 3-Pin DPAK
2SD1899-Z-E1-AZ
2SD1899-Z-E1-AZ
2SD1899-Z-E1-AZ Renesas Electronics NPN Transistor, 3 A, 60 V, 3-Pin DPAK
Renesas Electronics

Product Information

Dimensions:
6.5 x 5.5 x 2.3mm
Maximum Collector Emitter Saturation Voltage:
0.25 V
Transistor Material:
Si
Width:
5.5mm
Transistor Configuration:
Single
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
60 V
Maximum Base Emitter Saturation Voltage:
1.2 V
Maximum Emitter Base Voltage:
7 V
Length:
6.5mm
Maximum DC Collector Current:
3 A
Pin Count:
3
Minimum DC Current Gain:
50
Mounting Type:
Surface Mount
Maximum Power Dissipation:
10 W
Maximum Collector Emitter Voltage:
60 V
Height:
2.3mm
RoHs Compliant
Checking for live stock

This is NPN Transistor 3 A 60 V 3-Pin DPAK manufactured by Renesas Electronics. The manufacturer part number is 2SD1899-Z-E1-AZ. The given dimensions of the product include 6.5 x 5.5 x 2.3mm. Furthermore, the product is 5.5mm wide. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Its accurate length is 6.5mm. The product is available in surface mount configuration. In addition, the height is 2.3mm.

pdf icon
Silicon Power Transistor 2SD1899-Z(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 2SD1899-Z-E1-AZ on website for other similar products.
We accept all major payment methods for all products including ET13849135. Please check your shopping cart at the time of order.
You can order Renesas Electronics brand products with 2SD1899-Z-E1-AZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in BJT & Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Renesas Electronics 2SD1899-Z-E1-AZ NPN Transistor, 3 A, 60 V, 3-Pin DPAK. You can also check on our website or by contacting our customer support team for further order details on Renesas Electronics 2SD1899-Z-E1-AZ NPN Transistor, 3 A, 60 V, 3-Pin DPAK.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13849135 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Renesas Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number 2SD1899-Z-E1-AZ.
Yes. You can also search 2SD1899-Z-E1-AZ on website for other similar products.
Yes. We ship 2SD1899-Z-E1-AZ Internationally to many countries around the world.
