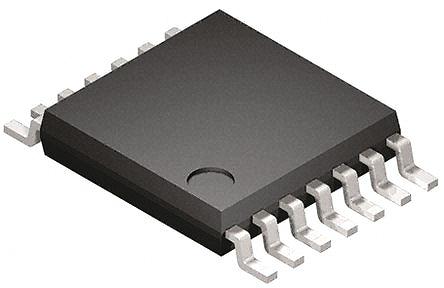

DiodesZetex 74LV07AT14-13, Hex Schmitt Trigger Open Drain Buffer, 14-Pin TSSOP

74LV07AT14-13 DiodesZetex , Hex Schmitt Trigger Open Drain Buffer, 14-Pin TSSOP

(0)

Product Information

Maximum Low Level Output Current:

12mA

Dimensions:

5.1 x 4.5 x 1.05mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

8.5 ns @ 50 pF

Minimum Operating Supply Voltage:

2 V

Minimum Operating Temperature:

-40 °C

Logic Function:

Buffer

Propagation Delay Test Condition:

50pF

Output Type:

Open Drain

Height:

1.05mm

Width:

4.5mm

Length:

5.1mm

Checking for live stock

This is Hex Schmitt Trigger Open Drain Buffer 14-Pin TSSOP manufactured by DiodesZetex. The manufacturer part number is 74LV07AT14-13. The given dimensions of the product include 5.1 x 4.5 x 1.05mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it has aopen drain output. In addition, the height is 1.05mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. It carries schmitt trigger input type. It is supplied with 6 channels. It has a maximum operating temperature of +125 °c.

74LV07A HEX BUFFERS WITH OPEN DRAIN OUTPUTS(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search 74LV07AT14-13 on website for other similar products.

We accept all major payment methods for all products including ET13950491. Please check your shopping cart at the time of order.

You can order DiodesZetex brand products with 74LV07AT14-13 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Buffers category are shipped in lowest possible time.

You will get a confirmation email regarding your order of DiodesZetex 74LV07AT14-13, Hex Schmitt Trigger Open Drain Buffer, 14-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex 74LV07AT14-13, Hex Schmitt Trigger Open Drain Buffer, 14-Pin TSSOP.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13950491 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number 74LV07AT14-13.

Yes. You can also search 74LV07AT14-13 on website for other similar products.

Yes. We ship 74LV07AT14-13 Internationally to many countries around the world.
