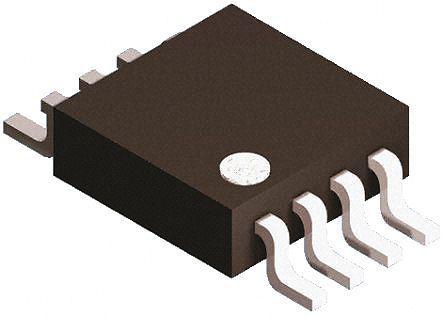

TinyLogic UHS Triple Buffer, Schmitt US8

NC7NZ17K8X TinyLogic UHS Triple Buffer, Schmitt US8

(0)

Product Information

Polarity:

Non-Inverting

Dimensions:

2 x 2.3 x 0.8mm

Logic Family:

TinyLogic UHC

Width:

2.3mm

Input Type:

Schmitt Trigger

Maximum Low Level Output Current:

32mA

Maximum High Level Output Current:

-32mA

Maximum Propagation Delay Time @ Maximum CL:

13.1 ns @ 15 pF

Minimum Operating Supply Voltage:

1.65 V

Output Type:

CMOS

Package Type:

JEDEC MO-187

Number of Channels:

Checking for live stock

This is TinyLogic UHS Triple Buffer Schmitt US8 manufactured by Fairchild Semiconductor. The manufacturer part number is NC7NZ17K8X. The given dimensions of the product include 2 x 2.3 x 0.8mm. Furthermore, the product is 2.3mm wide. It carries schmitt trigger input type. Furthermore, it has acmos output. It is supplied with 3 channels. It has a maximum operating temperature of +85 °c. Its accurate length is 2mm. The product is available in surface mount configuration. In addition, the height is 0.8mm. Whereas, the minimum operating temperature of the product is -40 °c.

ESD Control Selection Guide V1(Technical Reference)

NC7NZ17, TinyLogic UHS Triple Buffer with Schmitt Trigger Inputs(Technical Reference)
