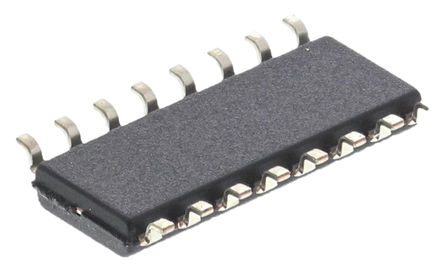

Nexperia HEF4049BT,653 Inverting Single Ended Buffer, 16-Pin SOIC

HEF4049BT-653 Nexperia HEF4049BT,653 Inverting Single Ended Buffer, 16-Pin SOIC
HEF4049BT,653
HEF4049BT-653 Nexperia HEF4049BT,653 Inverting Single Ended Buffer, 16-Pin SOIC
Nexperia

Product Information

Polarity:
Inverting
Dimensions:
10 x 4 x 1.45mm
Logic Family:
HEF
Width:
4mm
Input Type:
CMOS, DTL, TTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-3.6mA
Maximum Propagation Delay Time @ Maximum CL:
100 (Low to High) ns @ 50 pF, 70 (High to Low) ns
Minimum Operating Supply Voltage:
3 V
Output Type:
Single Ended
Package Type:
SO
Number of Channels:
1
Maximum Operating Temperature:
+85 °C
Length:
10mm
Pin Count:
16
Maximum Operating Supply Voltage:
15 V
Mounting Type:
Surface Mount
Logic Function:
Buffer
Height:
1.45mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Inverting Single Ended Buffer 16-Pin SOIC manufactured by Nexperia. The manufacturer part number is HEF4049BT,653. The given dimensions of the product include 10 x 4 x 1.45mm. Furthermore, the product is 4mm wide. It carries cmos, dtl, ttl input type. Furthermore, it has asingle ended output. It is supplied with 1 channels. It has a maximum operating temperature of +85 °c. Its accurate length is 10mm. The product is available in surface mount configuration. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
HEF4049B, Hex Inverting Buffers(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
