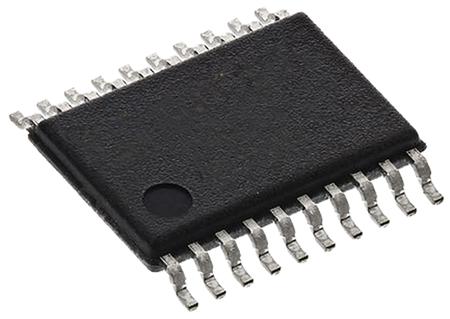

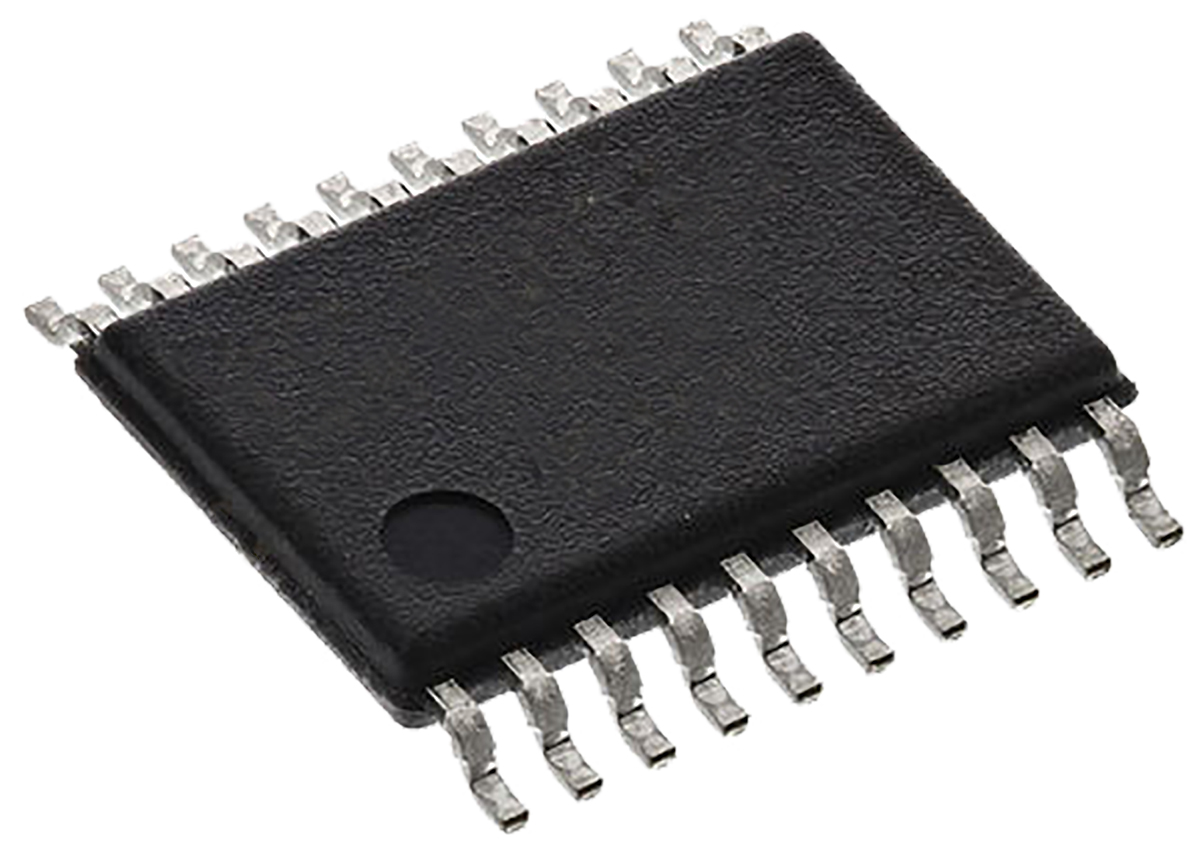

onsemi MC74VHCT541ADTG Buffer & Line Driver, 20-Pin TSSOP

MC74VHCT541ADTG onsemi Buffer & Line Driver, 20-Pin TSSOP
MC74VHCT541ADTG
MC74VHCT541ADTG
onsemi

Product Information

Maximum Low Level Output Current:
8mA
Dimensions:
6.6 x 4.5 x 1.05mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
9 ns @ 50 pF
Minimum Operating Supply Voltage:
4.5 V
Logic Family:
74VHC
Package Type:
TSSOP
Propagation Delay Test Condition:
50pF
IC Type:
Buffer & Line Driver IC
Maximum Operating Supply Voltage:
5.5 V
Pin Count:
20
Maximum High Level Output Current:
-8mA
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)
Input Type:
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
Number of Bits per Element:
8
REACH Status:
REACH Unaffected
Output Type:
3-State
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
29 Weeks
Mounting Type:
Surface Mount
Series:
74VHCT
Logic Type:
Buffer, Non-Inverting
Supplier Device Package:
20-TSSOP
Voltage - Supply:
4.5V ~ 5.5V
Current - Output High, Low:
8mA, 8mA
Number of Elements:
1
Base Product Number:
74VHCT541
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Buffer & Line Driver 20-Pin TSSOP manufactured by onsemi. The manufacturer part number is MC74VHCT541ADTG. The given dimensions of the product include 6.6 x 4.5 x 1.05mm. The product is available in surface mount configuration. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. The product consists of 8 bits per element. In addition, it is reach unaffected. Furthermore, it has a3-state output. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). It has a long 29 weeks standard lead time. The product 74vhct, is a highly preferred choice for users. The product is a buffer, non-inverting logic type. 20-tssop is the supplier device package value. It has optimum voltage supply of 4.5v ~ 5.5v. The high and low output current of the product is 8ma, 8ma. It carries 1 elements. Moreover, it corresponds to 74vhct541, a base product number of the product. The product is designated with the ear99 code number
