Maximum Low Level Output Current:
25mA
Dimensions:
12.95 x 7.6 x 2.4mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
12 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Logic Family:
HC
Height:
2.4mm
Width:
7.6mm
Length:
12.95mm

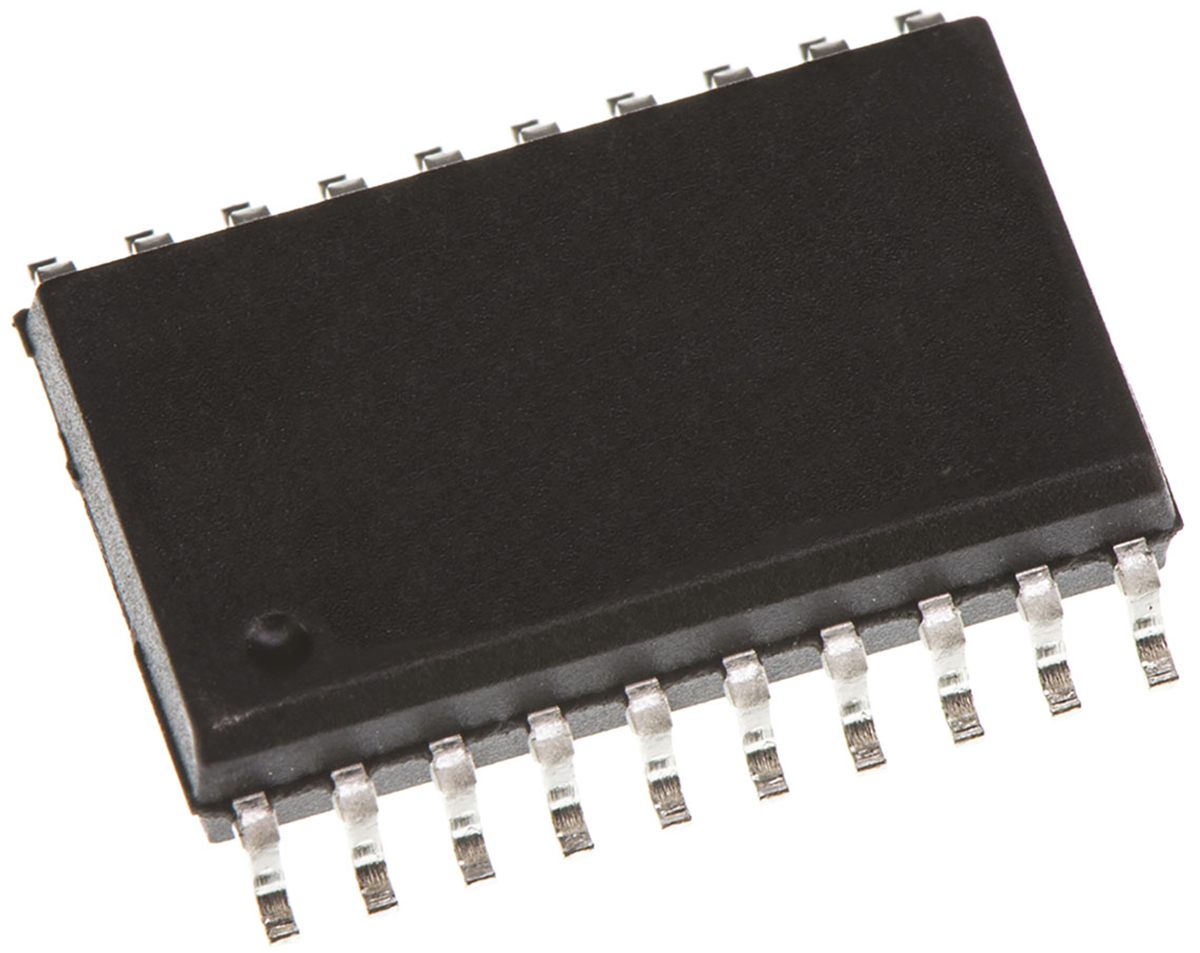

Package Type:
SOIC
Propagation Delay Test Condition:
50pF
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+125 °C
Pin Count:
20
Maximum High Level Output Current:
-25mA
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TA)
Input Type:
-
Package / Case:
20-SOIC (0.295", 7.50mm Width)
Number of Bits per Element:
8
REACH Status:
REACH Unaffected
Output Type:
3-State
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
standardLeadTime:
29 Weeks
Mounting Type:
Surface Mount
Series:
74VHC
Logic Type:
Buffer, Non-Inverting
Supplier Device Package:
20-SOIC
Voltage - Supply:
2V ~ 5.5V
Current - Output High, Low:
8mA, 8mA
Number of Elements:
1
Base Product Number:
74VHC541
ECCN:
EAR99
