Width:
154.5mm
Height:
145mm
Length:
145mm
Weight:
2kg
IP Rating:
IP66
Chart Type:
Paperless
Power Source:
Mains
Model Number p:

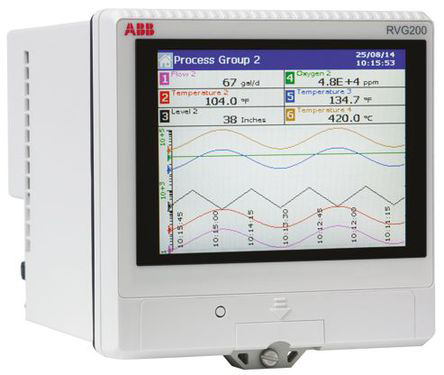

RVG200
Number of Inputs:
6
Number of Outputs:
1
Parameter Measured:
Current, Millivolt, Resistance, Temperature, Voltage
Recorder Input Type:
Digital 24 V, Digital Volt Free, mA, mV, Resistance, RTD, Thermocouple, V
Maximum Operating Voltage:
24 V dc, 240 V ac
Minimum Operating Voltage:
100V ac
Maximum Current Measurement:
50mA
Maximum Voltage Measurement:
24V
Maximum Humidity Measurement:
95%RH
Maximum Resistance Measurement:
0 ￫ 10000Ω
Maximum Temperature Measurement:
+50 °C
Best Current Measurement Accuracy:
0.1 %
Best Voltage Measurement Accuracy:
0.1 %
Best Resistance Measurement Accuracy:
0.1 %
Best Temperature Measurement Accuracy:
0.1 %
