Width:
144mm
Height:
144mm
Length:
192mm
Weight:
2.2kg
IP Rating:
IP65
Chart Type:
Graphical
Battery Life:
10 years
Battery Type:
Lithium 3V 1/2AA
Power Source:
A, Frequency Input, Pulse Input, RTD, Thermocouple, V

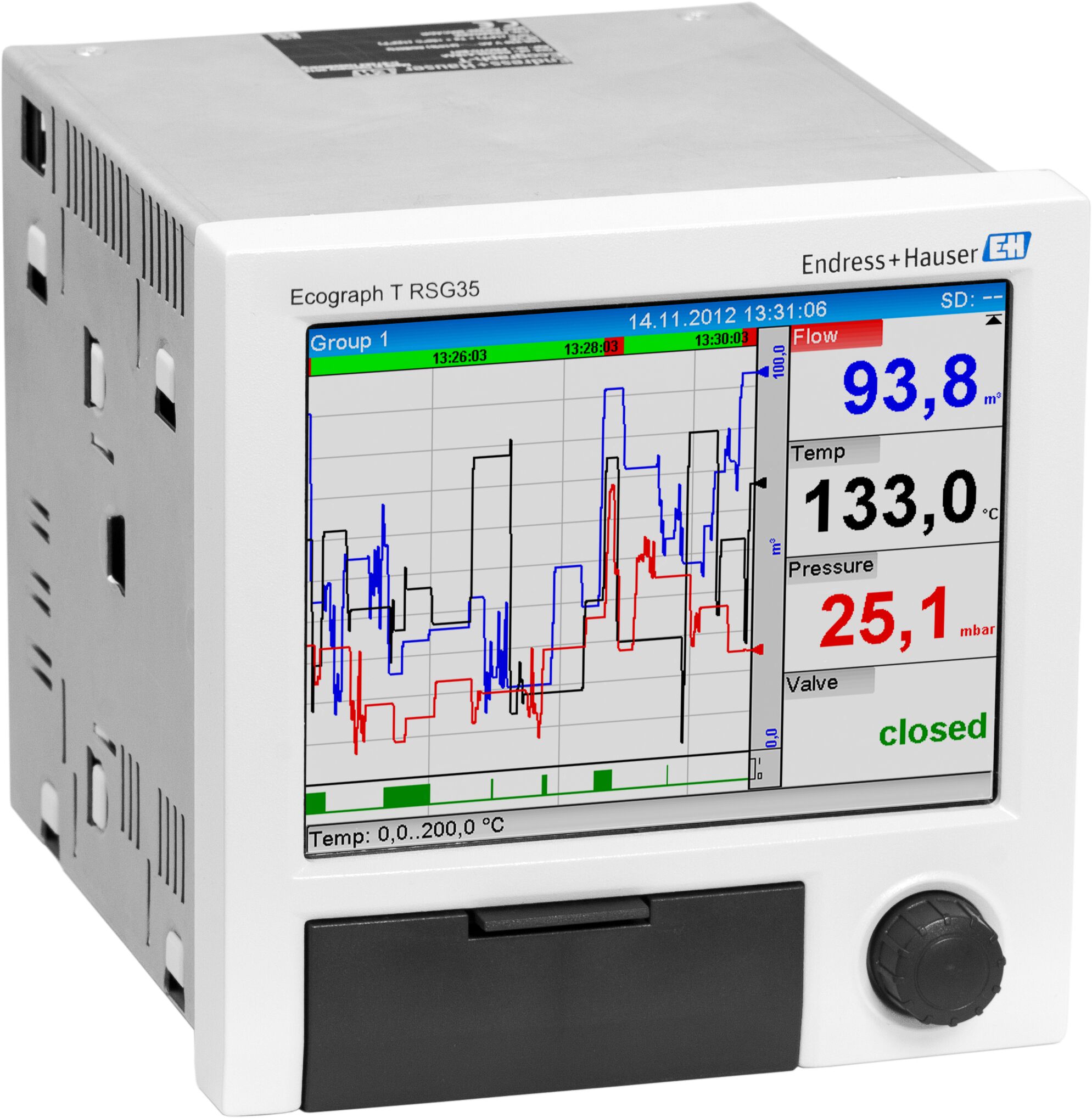

Model Number p:
RSG35-C2A
Number of Inputs:
8
Number of Outputs:
6
Parameter Measured:
Current, Frequency Input, Pulse Input, RTD, Thermocouple, Voltage
Maximum Operating Voltage:
27.6 Vdc
Minimum Operating Voltage:
21.6 Vdc
Maximum Current Measurement:
20mA
Maximum Voltage Measurement:
10V
Current Measurement Resolution:
100 ms
Voltage Measurement Resolution:
100 ms
Maximum Temperature Measurement:
2315 °C
Best Current Measurement Accuracy:
±0.1% oMR
Best Voltage Measurement Accuracy:
±0.1% oMR
Temperature Measurement Resolution:
1 s
Best Resistance Measurement Accuracy:
±0.1% oMR
Best Temperature Measurement Accuracy:
±0.1% oMR
