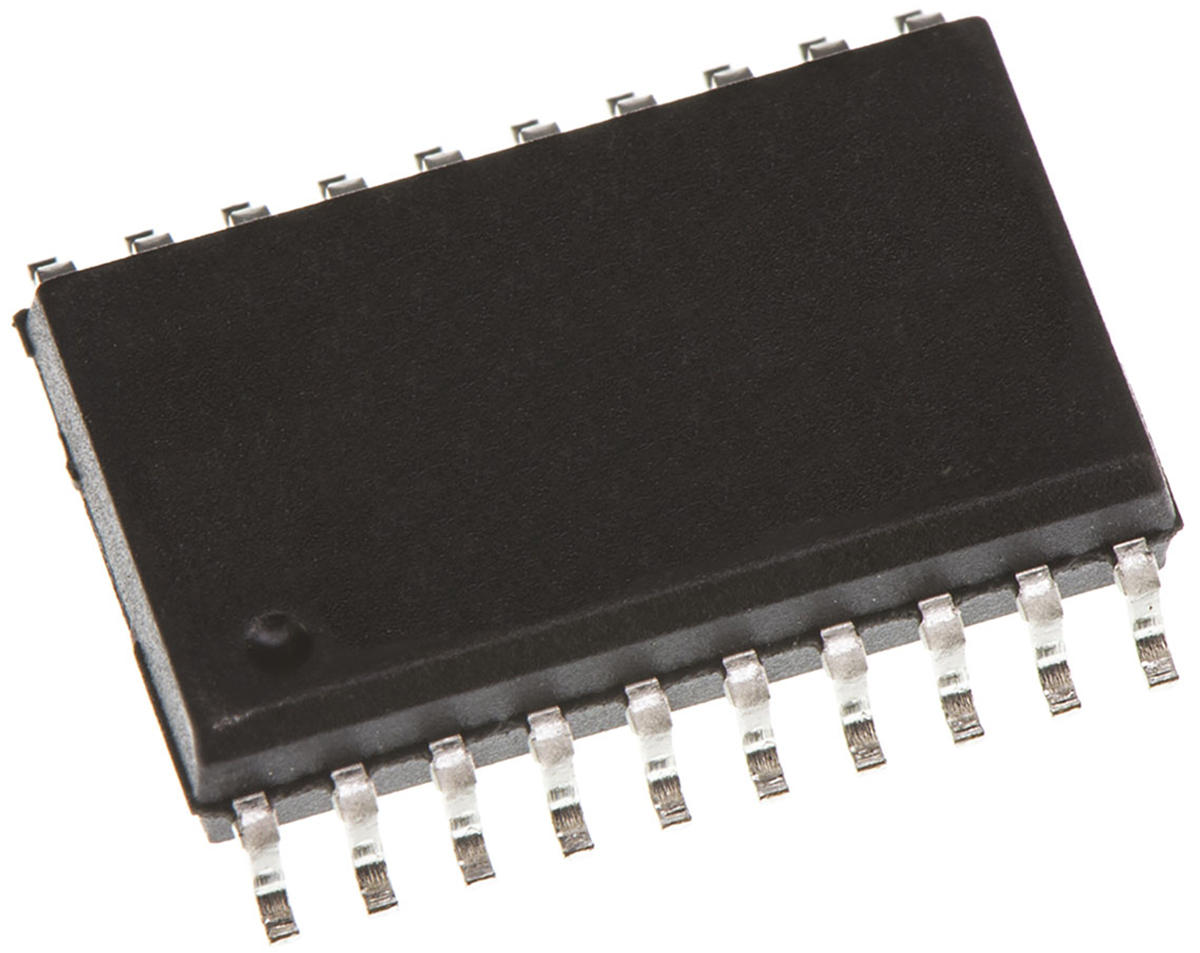

Texas Instruments CD74HC564M Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

Enrgtech Part No: ET100519691
|
Manufacturer Part No:
CD74HC564M
|
Manufacturer: Texas Instruments

CD74HC564M Texas Instruments Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

(0)

Product Information

Width:

7.52mm

Height:

2.35mm

Length:

12.8mm

Polarity:

Inverting

Pin Count:

Dimensions:

12.8 x 7.52 x 2.35mm

Input Type:

Single Ended

Output Type:

3 State

Logic Family:

Package Type:

SOIC

Mounting Type:

Surface Mount

Logic Function:

D Type

10 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 0.93

£ 4.65

£ 0.88

£ 22.00

£ 0.79

£ 39.50

Mfr Part No:

CD74HC564M

Seller:

Texas Instruments

Origin:

Warranty:

Manufacturer

Data Code:

ET100519691

Order Today!

From: United Kingdom

Est Ship Date: 31 Aug, 2026

Est Fastest Delivery: 01 Sep, 2026

Quantity Quantity

This is Octal D Type Flip Flop IC 3-State 20-Pin SOIC manufactured by Texas Instruments. The manufacturer part number is CD74HC564M. Furthermore, the product is 7.52mm wide. In addition, the height is 2.35mm. Its accurate length is 12.8mm. The given dimensions of the product include 12.8 x 7.52 x 2.35mm. It carries single ended input type. Furthermore, it has a3 state output. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -55 °c.
