Width:
260mm
Height:
88mm
Length:
235mm
Series:
TG2000
Weight:
2kg
Plug Type:
Type C - European Plug, Type G - British 3-pin
Calibrated:
RSCAL
Dimensions:
235 x 260 x 88mm
Model Number:

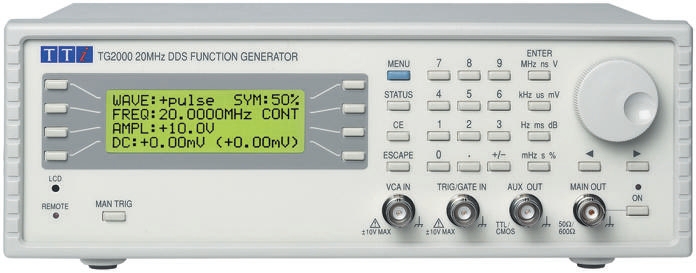

TG 2000
FM Modulation:
Yes
Interface Type:
RS232, USB
Variable Sweep:
Yes
Input Impedance:
10 kΩ
Output Amplitude:
20V Pk-Pk
Output Impedance:
50 Ω, 600 Ω
Digital Frequency:
Yes
Time Base Accuracy:
±10ppm
Digital Amplitude and Offset:
Yes
Internal Linear and Log Sweep:
Yes
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
+5°C
Maximum Frequency Range Sinewave:
20MHz
Minimum Frequency Range Sinewave:
1mHz
Maximum Frequency Range Triangle/Saw:
1MHz
Minimum Frequency Range Triangle/Saw:
1mHz
Internal and External Amplitude Modulation:
Yes
Frequency Range Square Pulse and Arbitrary Waveform:
1 mHz → 20 MHz
Maximum Frequency Range Square Pulse and Arbitrary Waveform:
20MHz
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
1 mHz
