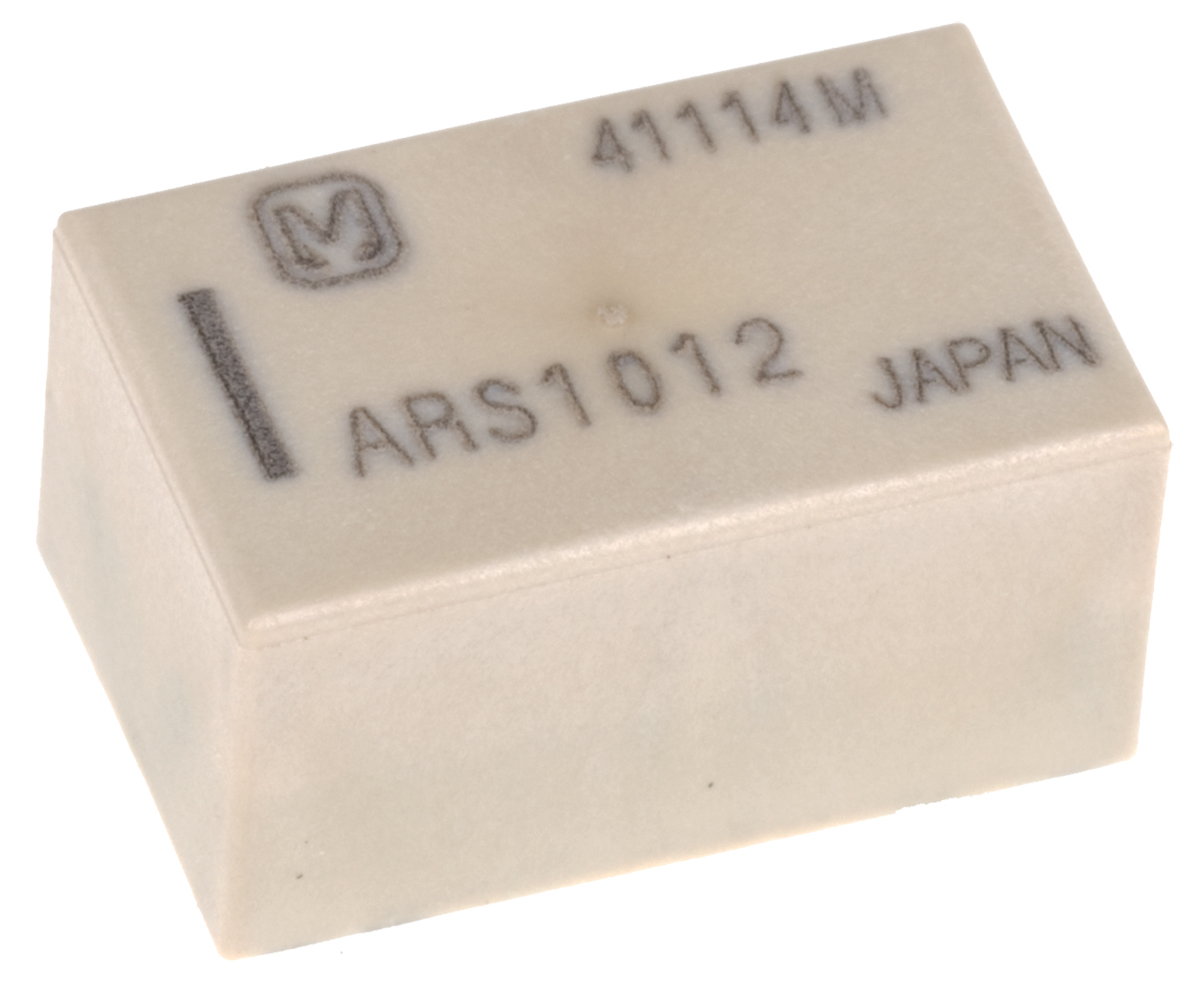

Panasonic PCB Mount High Frequency Relay, 12V dc Coil, 75Ω Impedance, 3GHz Max. Coil Freq., SPDT

ARS1012 Panasonic PCB Mount High Frequency Relay, 12V dc Coil, 75Ω Impedance, 3GHz Max. Coil Freq., SPDT
ARS1012
ARS1012 Panasonic PCB Mount High Frequency Relay, 12V dc Coil, 75Ω Impedance, 3GHz Max. Coil Freq., SPDT
Panasonic

Product Information

Life:
300000 (Electrical) cycles, 5000000 (Mechanical) cycles
Depth:
8.6mm
Height:
7.2mm
Length:
14mm
Impedance:
75Ω
Isolation:
30 dB @ 3 GHz
Coil Power:
200mW
Dimensions:
14 x 8.6 x 7.2mm
Relay Type:
HF Relay
Coil Voltage:
12V dc
Mounting Type:
PCB Mount
Insertion Loss:
0.3 dB @ 3 GHz
Coil Resistance:
720Ω
Contact Material:
Gold Plated
Switching Voltage:
30V dc
Contact Resistance:
100 mΩ
Contact Configuration:
SPDT
Maximum Coil Frequency:
3GHz
Operating Temperature Range:
-40 → +70°C
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-40°C
VSWR Voltage Standing Wave Ratio:
1.4 @ 3 GHz
RoHs Compliant
47 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 12.70
£ 12.70
10
£ 12.05
£ 120.50
25
£ 11.44
£ 286.00
Mfr Part No:
ARS1012
Seller:
Panasonic
Origin:
Warranty:
Manufacturer
Data Code:
ET100141515
Order Today!
From: United Kingdom
Est Ship Date: 15 Jul, 2026
Est Fastest Delivery: 16 Jul, 2026

This is PCB Mount High Frequency Relay 12V dc Coil 75Ω Impedance 3GHz Max. Coil Freq. SPDT manufactured by Panasonic. The manufacturer part number is ARS1012. The product comes in 8.6mm depth. In addition, the height is 7.2mm. Its accurate length is 14mm. It has an impedance value of 75ω. Features a 30 db @ 3 ghz isolation. Robust coil power of 200mw. The given dimensions of the product include 14 x 8.6 x 7.2mm. This is basically a hf relay. The coil voltage of the product is 12v dc. The product is available in pcb mount configuration. Allows 0.3 db @ 3 ghz of insertion loss. It holds up to 720ω coil resistance. The product is made from sturdy gold plated materials. The product's switching voltage is 30v dc. It features a 100 mω contact resistance. It has a maximum operating temperature of +70°c. Whereas, the minimum operating temperature of the product is -40°c.
