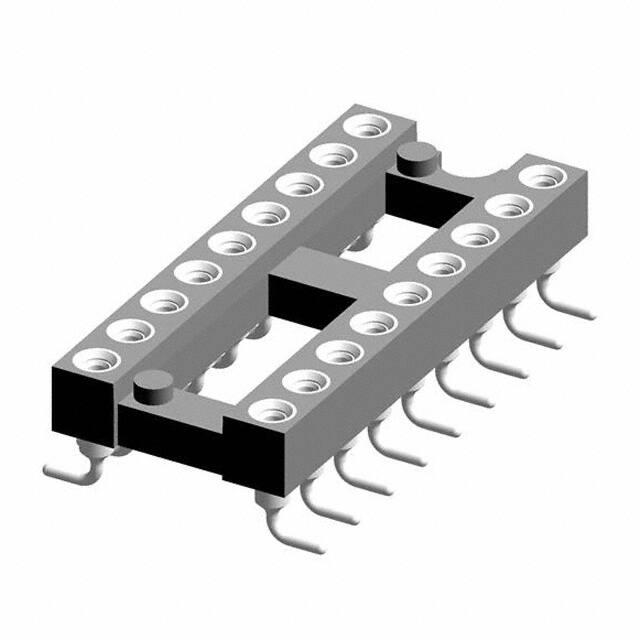

This is manufactured by Preci-Dip. The manufacturer part number is 110-87-318-41-105101. The product contains 18 contacts. The product has a current rating of 1a. The given dimensions of the product include 22.8 x 10.1 x 2.8mm. The product is available in surface mount configuration. Moreover, the product has a nominal 100 v ac, 150 v dc voltage rating. The product is made from sturdy beryllium copper, brass materials. Its accurate length is 22.8mm. The product also features robust glass fibre reinforced pet housing material. Furthermore, the product is 10.1mm wide. The product comes in 2.8mm depth. Moreover, the product is 2.54mm The product has a vertical orientation. It has a maximum operating temperature of +125°c. Whereas, the minimum operating temperature of the product is -55°c. It features a 10mohm contact resistance. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polycyclohexylenedimethylene terephthalate (pct), polyester, glass filled housing material. The product has -55°c ~ 125°c operating temperature range. The product is supplied with 18 (2 x 9) positions/pins. Its contact is manufactured from highly durable beryllium copper. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable brass. It is shipped in bulk. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 20 weeks standard lead time. Additionally, the product's output is 1 a It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include open frame. The termination post is a 0.118" (3.00mm) long. The product 110, is a highly preferred choice for users. However, flash is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number Moreover, it corresponds to 110-87, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).
For more information please check the datasheets.
