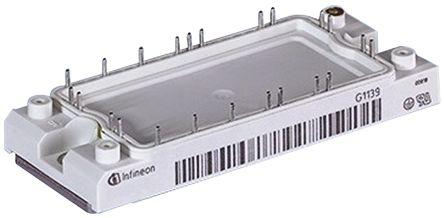

Infineon FP25R12KS4CBOSA1, ECONO2 3 Phase Bridge IGBT Module, 40 A max, 1200 V, PCB Mount

FP25R12KS4CBOSA1 Infineon , ECONO2 3 Phase Bridge IGBT Module, 40 A max, 1200 V, PCB Mount
Infineon

Product Information

Configuration:
3 Phase Bridge
Dimensions:
107.5 x 45 x 17mm
Mounting Type:
PCB Mount
Maximum Power Dissipation:
230 W
Maximum Continuous Collector Current:
40 A
Maximum Collector Emitter Voltage:
1200 V
Height:
17mm
Width:
45mm
Length:
107.5mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
ECONO2
Minimum Operating Temperature:
-40 °C
Switching Speed:
1MHz
Channel Type:
N
Maximum Operating Temperature:
+125 °C
Pin Count:
24
Transistor Configuration:
3 Phase
RoHs Compliant
Checking for live stock

This is ECONO2 3 Phase Bridge IGBT Module 40 A max 1200 V PCB Mount manufactured by Infineon. The manufacturer part number is FP25R12KS4CBOSA1. The product is available in 3 phase bridge configuration. The given dimensions of the product include 107.5 x 45 x 17mm. The product is available in pcb mount configuration. In addition, the height is 17mm. Furthermore, the product is 45mm wide. Its accurate length is 107.5mm. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +125 °c.
