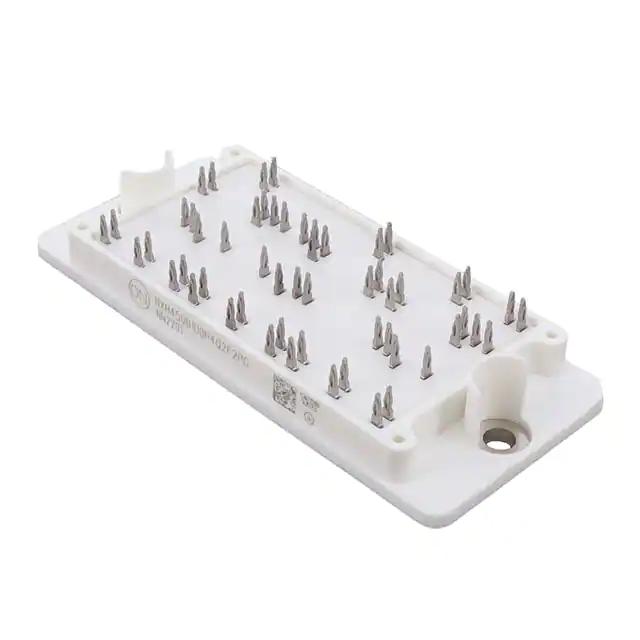

onsemi NXH450B100H4Q2F2PG

NXH450B100H4Q2F2PG onsemi
NXH450B100H4Q2F2PG
onsemi

Product Information

Maximum Power Dissipation:
79 W
Maximum Collector Emitter Voltage:
1000 V
Number of Transistors:
2
Maximum Continuous Collector Current:
101 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
Q2BOOST - Case 180BG (Pb-Free and Halide-Free Press Fit Pins)
Current - Collector (Ic) (Max):
101 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Vce(on) (Max) @ Vge, Ic:
2.25V @ 15V, 150A
Voltage - Collector Emitter Breakdown (Max):
1000 V
Operating Temperature:
-40°C ~ 150°C (TJ)
Input Capacitance (Cies) @ Vce:
9.342 nF @ 20 V
Package / Case:
Module
Input:
Standard
NTC Thermistor:
Yes
REACH Status:
REACH Unaffected
Configuration:
2 Independent
Package:
Tray
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
63 Weeks
IGBT Type:
-
Current - Collector Cutoff (Max):
600 µA
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
56-PIM (93x47)
Power - Max:
234 W
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is NXH450B100H4Q2F2PG. The maximum collector current includes 101 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 2.25v @ 15v, 150a. The maximum collector emitter breakdown voltage of the product is 1000 v. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. Its input values include standard. In addition, it is reach unaffected. The product is available in 2 independent configuration. It is shipped in tray. Its typical moisture sensitivity level is not applicable. It has a long 63 weeks standard lead time. In addition, 600 µa is the maximum current at collector cutoff. The product is available in chassis mount configuration. 56-pim (93x47) is the supplier device package value. The maximum power of the product is 234 w. The product is designated with the ear99 code number

pdf icon
Datasheet - NXH450B100H4Q2F2PG(Technical Reference)
pdf icon
Wafer Fab Change 27/Dec/2022(PCN Assembly/Origin)
pdf icon
NXH450B100H4Q2F2, NXH450B100H4Q2F2PG-R(Datasheets)
