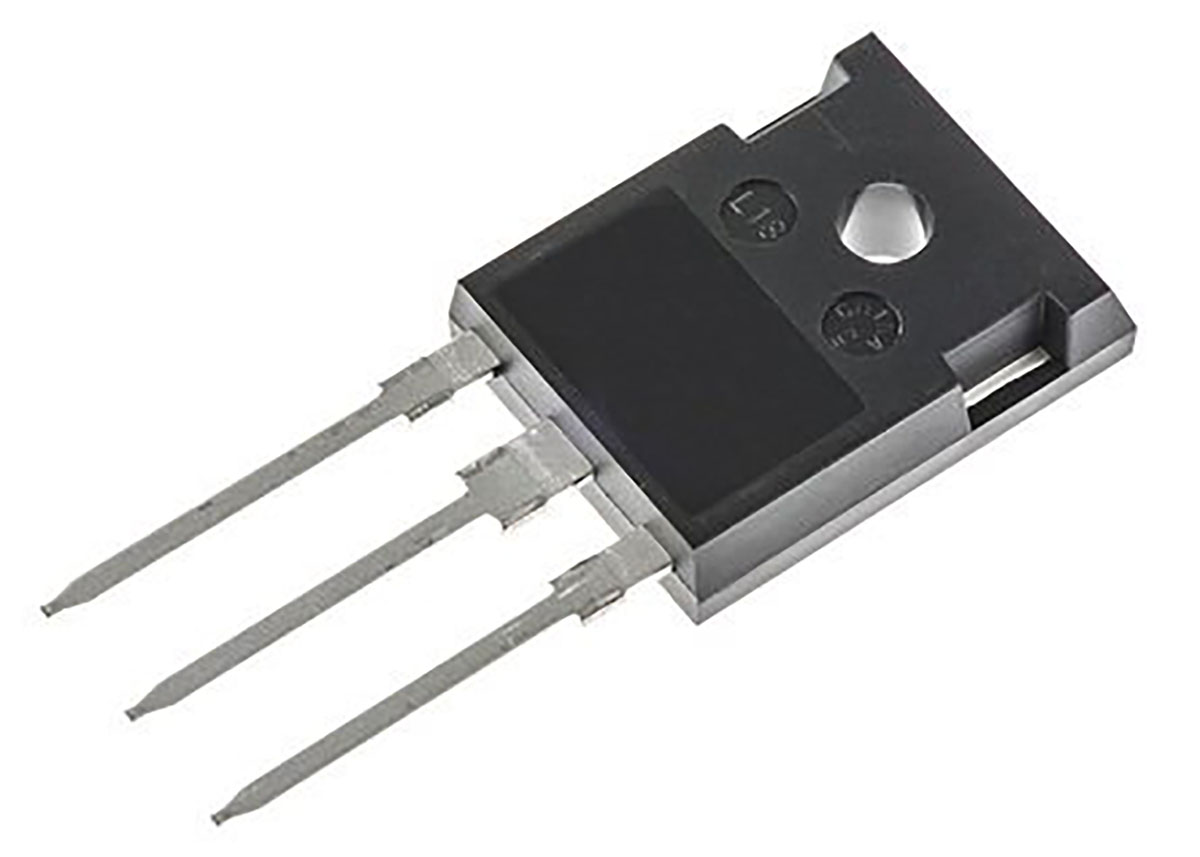

STMicroelectronics STGW20V60DF IGBT, 40 A 600 V, 3-Pin TO-247, Through Hole

Enrgtech Part No: ET100876129
|
Manufacturer Part No:
STGW20V60DF
|
Manufacturer: Stmicroelectronics

STGW20V60DF STMicroelectronics IGBT, 40 A 600 V, 3-Pin TO-247, Through Hole

(0)

Product Information

Pin Count:

Dimensions:

15.75 x 5.15 x 20.15mm

Channel Type:

Package Type:

TO-247

Mounting Type:

Through Hole

Switching Speed:

1MHz

Transistor Configuration:

Single

Maximum Power Dissipation:

167 W

Maximum Gate Emitter Voltage:

±20V

Maximum Operating Temperature:

+175 °C

Minimum Operating Temperature:

-55 °C

Maximum Collector Emitter Voltage:

600 V

205 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 2.83

£ 14.15

£ 2.45

£ 24.50

£ 2.35

£ 58.75

Mfr Part No:

STGW20V60DF

Seller:

Stmicroelectronics

Origin:

Warranty:

Manufacturer

Data Code:

ET100876129

Order Today!

From: United Kingdom

Est Ship Date: 16 Jul, 2026

Est Fastest Delivery: 17 Jul, 2026

Quantity Quantity

This is STMicroelectronics IGBT 40 A 600 V 3-Pin TO-247 Through Hole manufactured by Stmicroelectronics. The manufacturer part number is STGW20V60DF. The given dimensions of the product include 15.75 x 5.15 x 20.15mm. The product is available in [Cannel Type] channel. The product is available in through hole configuration. It has a maximum operating temperature of +175 °c. Whereas, the minimum operating temperature of the product is -55 °c.
