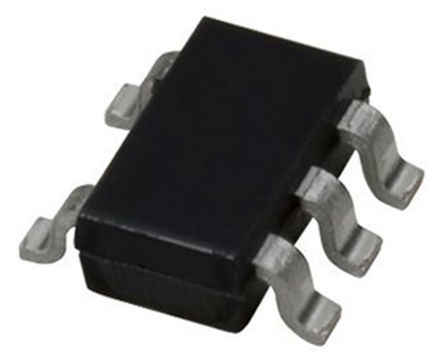

DiodesZetex 74AHC1G14SE-7 Schmitt Trigger Inverter, 5-Pin SOT-353

74AHC1G14SE-7 DiodesZetex Schmitt Trigger Inverter, 5-Pin SOT-353
74AHC1G14SE-7 DiodesZetex Schmitt Trigger Inverter, 5-Pin SOT-353
DiodesZetex

Product Information

Maximum Low Level Output Current:
4mA
Maximum High Level Output Current:
-8mA
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
13.5ns
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
AHC
Height:
1mm
Width:
1.35mm
Length:
2.2mm
Package Type:
SOT-353
Number of Elements per Chip:
1
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
RoHs Compliant
Checking for live stock

This is Schmitt Trigger Inverter 5-Pin SOT-353 manufactured by DiodesZetex. The manufacturer part number is 74AHC1G14SE-7. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.2mm. It carries schmitt trigger input type. It has a maximum operating temperature of +125 °c.

pdf icon
74ahc1g14 Single Schmitt-Trigger InVereter(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Rod Hodgkinson
    24 Feb 2023

    This is an excellent choice for digital circuit applications. Its precise and stable output, as well as its ability to reject noise and provide hysteresis, make it a reliable component. Highly recommended for anyone looking for a versatile and dependable inverter.

FAQs

Yes. You can also search 74AHC1G14SE-7 on website for other similar products.
We accept all major payment methods for all products including ET13856203. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with 74AHC1G14SE-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DiodesZetex 74AHC1G14SE-7 Schmitt Trigger Inverter, 5-Pin SOT-353. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex 74AHC1G14SE-7 Schmitt Trigger Inverter, 5-Pin SOT-353.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13856203 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number 74AHC1G14SE-7.
Yes. You can also search 74AHC1G14SE-7 on website for other similar products.
Yes. We ship 74AHC1G14SE-7 Internationally to many countries around the world.
