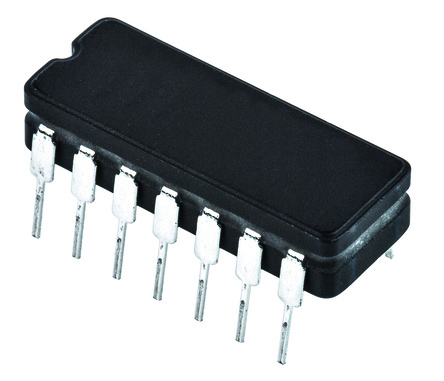

Texas Instruments SN54HC14J, Hex Schmitt Trigger Inverter, 2 → 6 V, 14-Pin CDIP

SN54HC14J Texas Instruments , Hex Schmitt Trigger Inverter, 2 → 6 V, 14-Pin CDIP
Texas Instruments

Product Information

Dimensions:
19.94 x 7.62 x 3.56mm
Logic Family:
HC
Width:
7.62mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Maximum Propagation Delay Time @ Maximum CL:
190 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
CMOS
Package Type:
CDIP
Number of Elements per Chip:
6
Maximum Operating Temperature:
+125 °C
Length:
19.94mm
Pin Count:
14
Mounting Type:
Through Hole
Maximum Operating Supply Voltage:
6 V
Logic Function:
Inverter
Height:
3.56mm
Minimum Operating Temperature:
-55 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Hex Schmitt Trigger Inverter 2 → 6 V 14-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is SN54HC14J. The given dimensions of the product include 19.94 x 7.62 x 3.56mm. Furthermore, the product is 7.62mm wide. It carries schmitt trigger input type. Furthermore, it has acmos output. It has a maximum operating temperature of +125 °c. Its accurate length is 19.94mm. The product is available in through hole configuration. In addition, the height is 3.56mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SN54HC14J on website for other similar products.
We accept all major payment methods for all products including ET13960829. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with SN54HC14J directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments SN54HC14J, Hex Schmitt Trigger Inverter, 2 → 6 V, 14-Pin CDIP. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments SN54HC14J, Hex Schmitt Trigger Inverter, 2 → 6 V, 14-Pin CDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13960829 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number SN54HC14J.
Yes. You can also search SN54HC14J on website for other similar products.
Yes. We ship SN54HC14J Internationally to many countries around the world.
