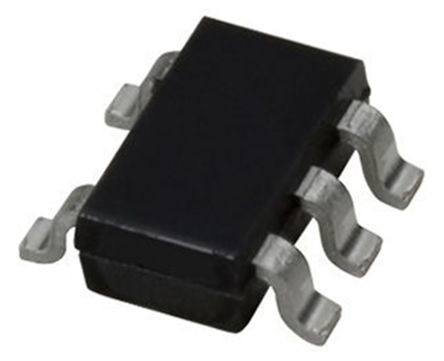

DiodesZetex 74LVC1G14SE-7 Schmitt Trigger Inverter, 1.65 → 5.5 V, 5-Pin SOT-353

Enrgtech Part No: ET14157600
|
Manufacturer Part No:
74LVC1G14SE-7
|
Manufacturer: DiodesZetex

74LVC1G14SE-7 DiodesZetex Schmitt Trigger Inverter, 1.65 → 5.5 V, 5-Pin SOT-353

(0)

Product Information

Dimensions:

2.2 x 1.35 x 1mm

Logic Family:

LVC

Width:

1.35mm

Input Type:

Schmitt Trigger

Maximum Low Level Output Current:

32mA

Maximum High Level Output Current:

-32mA

Maximum Propagation Delay Time @ Maximum CL:

6.5 ns @ 50 pF

Minimum Operating Supply Voltage:

1.65 V

Output Type:

Push-Pull

Package Type:

SOT-353

Number of Elements per Chip:

Maximum Operating Temperature:

+125 °C

Checking for live stock

This is Schmitt Trigger Inverter 1.65 → 5.5 V 5-Pin SOT-353 manufactured by DiodesZetex. The manufacturer part number is 74LVC1G14SE-7. The given dimensions of the product include 2.2 x 1.35 x 1mm. Furthermore, the product is 1.35mm wide. It carries schmitt trigger input type. Furthermore, it has apush-pull output. It has a maximum operating temperature of +125 °c. Its accurate length is 2.2mm. The product is available in surface mount configuration. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c.

Datasheet - 74LVC1G14(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
