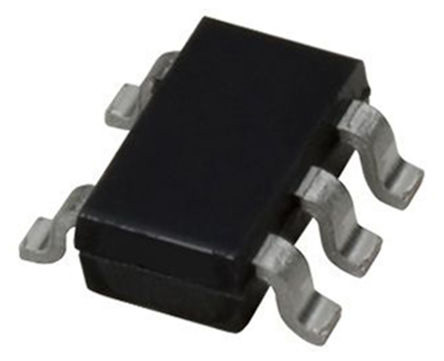

DiodesZetex 74LVCE1G04SE-7 Inverter, 5-Pin SOT-353

74LVCE1G04SE-7 DiodesZetex Inverter, 5-Pin SOT-353
74LVCE1G04SE-7
74LVCE1G04SE-7 DiodesZetex Inverter, 5-Pin SOT-353
DiodesZetex

Product Information

Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Maximum Operating Supply Voltage:
5.5 V
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
7.5 ns @ 50 pF
Minimum Operating Supply Voltage:
1.4 V
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Output Type:
Totem Pole
Height:
1mm
Width:
1.35mm
Length:
2.2mm
Package Type:
SOT-353
Logic Family:
LVC
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Number of Elements per Chip:
1
RoHs Compliant
Checking for live stock

This is Inverter 5-Pin SOT-353 manufactured by DiodesZetex. The manufacturer part number is 74LVCE1G04SE-7. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. Furthermore, it has atotem pole output. In addition, the height is 1mm. Furthermore, the product is 1.35mm wide. Its accurate length is 2.2mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c.

pdf icon
Single Inverter Gate Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 74LVCE1G04SE-7 on website for other similar products.
We accept all major payment methods for all products including ET14157603. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with 74LVCE1G04SE-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Inverters ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DiodesZetex 74LVCE1G04SE-7 Inverter, 5-Pin SOT-353. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex 74LVCE1G04SE-7 Inverter, 5-Pin SOT-353.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14157603 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number 74LVCE1G04SE-7.
Yes. You can also search 74LVCE1G04SE-7 on website for other similar products.
Yes. We ship 74LVCE1G04SE-7 Internationally to many countries around the world.
