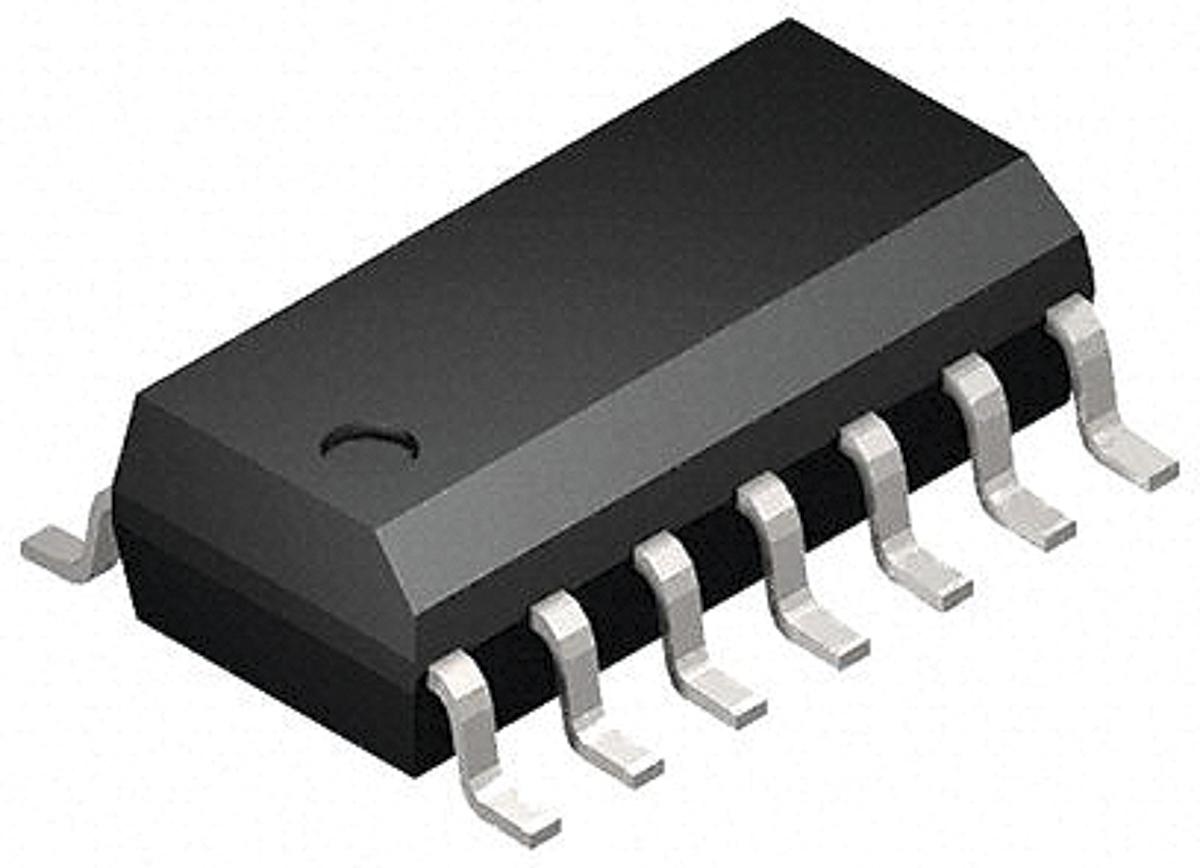

Toshiba 74HC04D, Hex, Buffered CMOS Inverter, 14-Pin SOIC

74HC04D Toshiba , Hex, Buffered CMOS Inverter, 14-Pin SOIC
Toshiba

Product Information

Maximum Low Level Output Current:
5.2mA
Maximum High Level Output Current:
-5.2mA
Dimensions:
8.95 x 3.9 x 1.38mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
130 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Output Type:
Buffered
Height:
1.38mm
Width:
3.9mm
Length:
8.95mm
Package Type:
SOIC
Logic Family:
74HC
Input Type:
CMOS
Maximum Operating Supply Voltage:
6 V
Maximum Operating Temperature:
+125 °C
Pin Count:
14
Number of Elements per Chip:
6
RoHs Compliant
Checking for live stock

This is Hex Buffered CMOS Inverter 14-Pin SOIC manufactured by Toshiba. The manufacturer part number is 74HC04D. The given dimensions of the product include 8.95 x 3.9 x 1.38mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it has abuffered output. In addition, the height is 1.38mm. Furthermore, the product is 3.9mm wide. Its accurate length is 8.95mm. It carries cmos input type. It has a maximum operating temperature of +125 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
