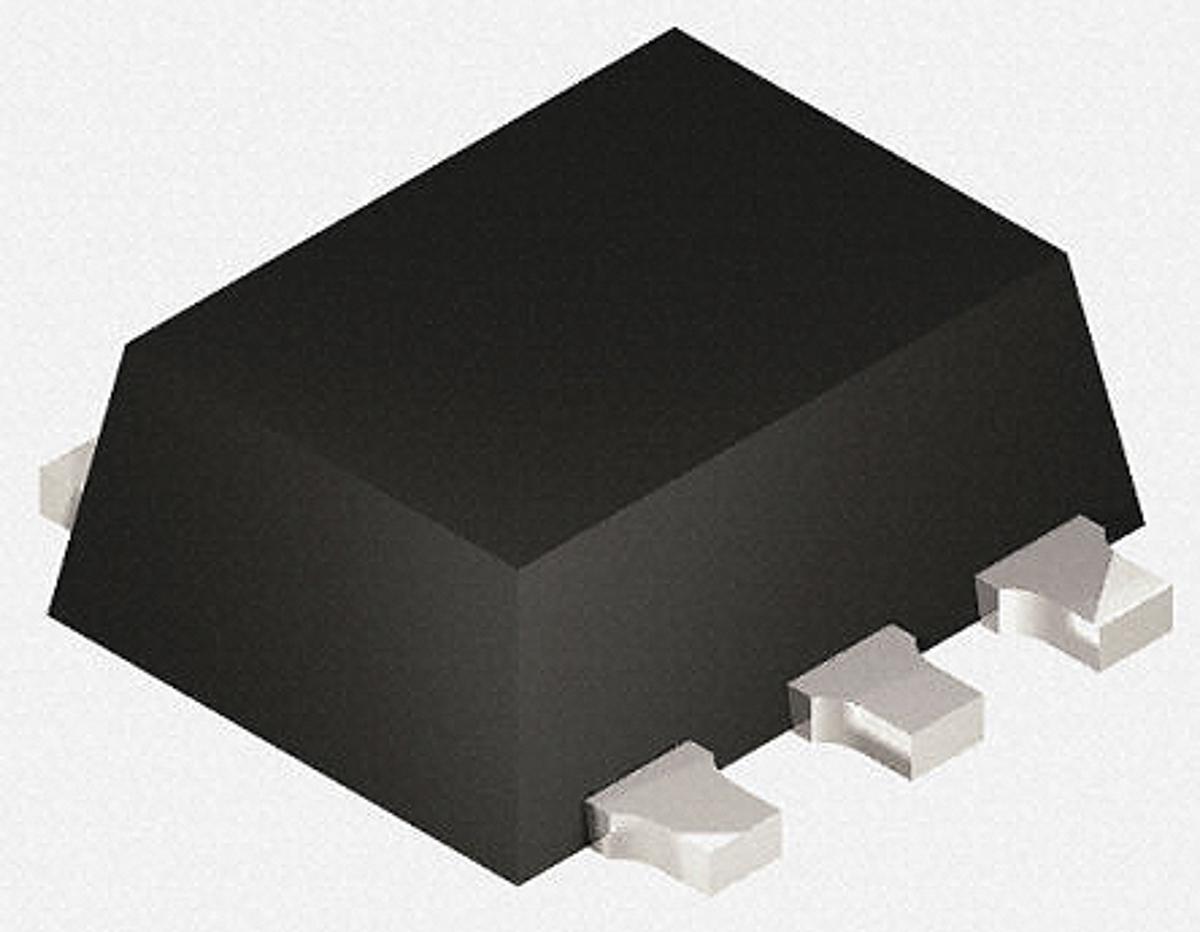

Toshiba TC7SZU04FE Inverter, 5-Pin SOT-553

TC7SZU04FE Toshiba Inverter, 5-Pin SOT-553
Toshiba

Product Information

Dimensions:
1.6 x 1.2 x 0.55mm
Logic Family:
LMOS
Width:
1.2mm
Input Type:
CMOS
Automotive Standard:
AEC-Q100
Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Maximum Propagation Delay Time @ Maximum CL:
7.5 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Output Type:
Current
Package Type:
SOT-553
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
Length:
1.6mm
Pin Count:
5
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
Inverter
Height:
0.55mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Inverter 5-Pin SOT-553 manufactured by Toshiba. The manufacturer part number is TC7SZU04FE. The given dimensions of the product include 1.6 x 1.2 x 0.55mm. Furthermore, the product is 1.2mm wide. It carries cmos input type. Furthermore, it has acurrent output. It has a maximum operating temperature of +125 °c. Its accurate length is 1.6mm. The product is available in surface mount configuration. In addition, the height is 0.55mm. Whereas, the minimum operating temperature of the product is -40 °c.
