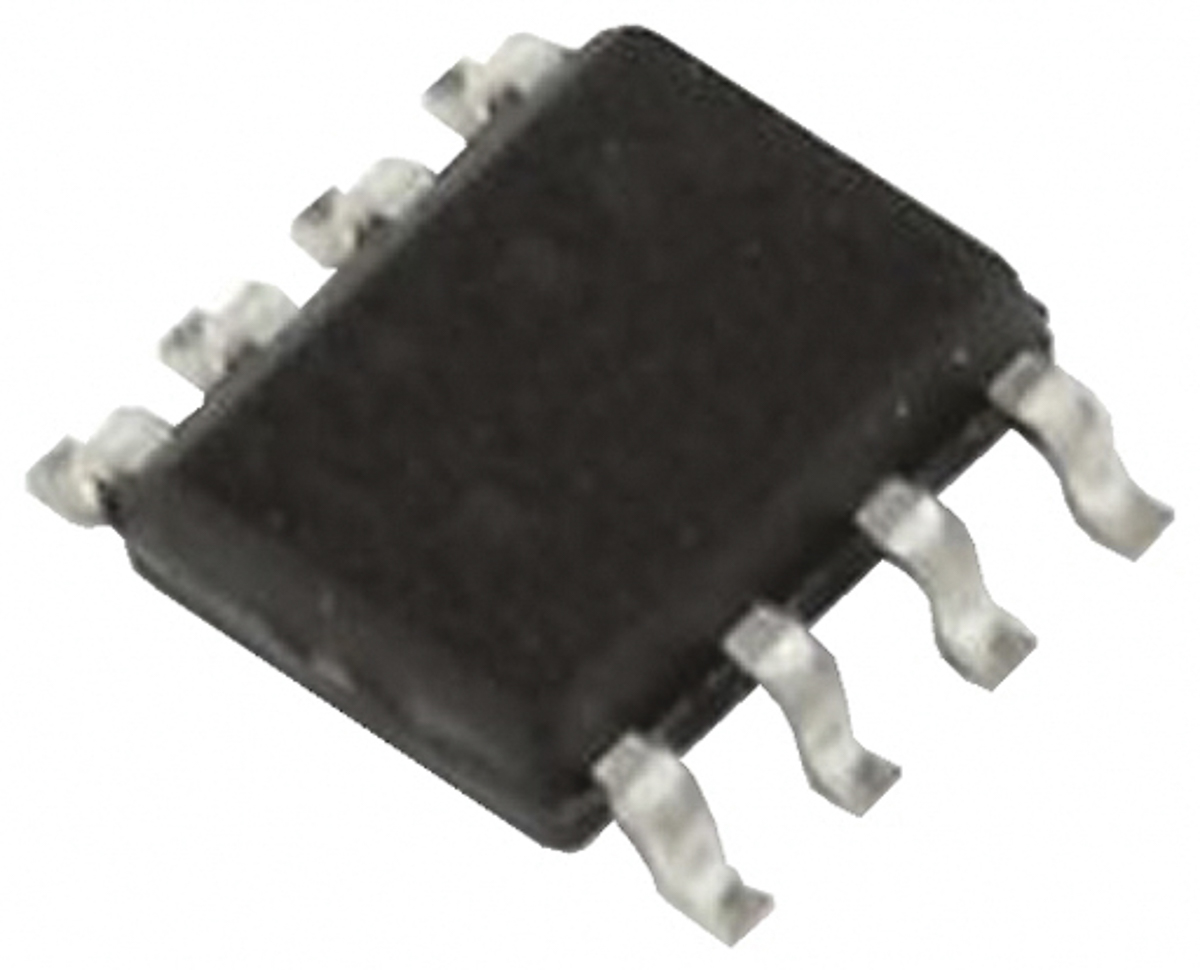

Toshiba TC7WZU04FU Triple Inverter, 8-Pin SSOP

TC7WZU04FU Toshiba Triple Inverter, 8-Pin SSOP
Toshiba

Product Information

Maximum Low Level Output Current:
16mA
Maximum High Level Output Current:
-16mA
Dimensions:
2.9 x 2.8 x 1.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
7 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Output Type:
Current
Height:
1.95mm
Width:
2.8mm
Length:
2.9mm
Package Type:
SSOP
Logic Family:
LMOS
Input Type:
CMOS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Number of Elements per Chip:
3
RoHs Compliant
Checking for live stock

This is Triple Inverter 8-Pin SSOP manufactured by Toshiba. The manufacturer part number is TC7WZU04FU. The given dimensions of the product include 2.9 x 2.8 x 1.95mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it has acurrent output. In addition, the height is 1.95mm. Furthermore, the product is 2.8mm wide. Its accurate length is 2.9mm. It carries cmos input type. It has a maximum operating temperature of +85 °c.
