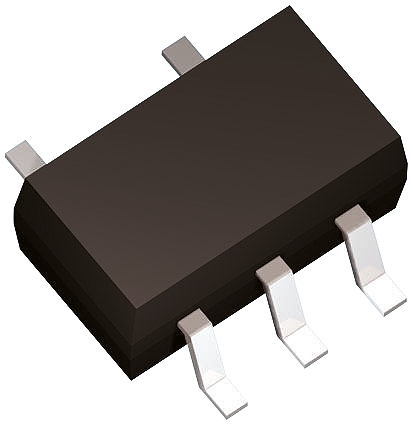

Nexperia 74AHC1G14GV,125 Schmitt Trigger CMOS Inverter, 2 → 5.5 V, 5-Pin SC-74

74AHC1G14GV-125 Nexperia 74AHC1G14GV,125 Schmitt Trigger CMOS Inverter, 2 → 5.5 V, 5-Pin SC-74
Nexperia

Product Information

Dimensions:
3.1 x 1.7 x 1mm
Logic Family:
AHC
Width:
1.7mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
8mA
Maximum High Level Output Current:
-8mA
Maximum Propagation Delay Time @ Maximum CL:
13.5 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
Single Ended
Package Type:
SC-74
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
Length:
3.1mm
Pin Count:
5
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
5.5 V
Logic Function:
Inverter
Height:
1mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Schmitt Trigger CMOS Inverter 2 → 5.5 V 5-Pin SC-74 manufactured by Nexperia. The manufacturer part number is 74AHC1G14GV,125. The given dimensions of the product include 3.1 x 1.7 x 1mm. Furthermore, the product is 1.7mm wide. It carries schmitt trigger input type. Furthermore, it has asingle ended output. It has a maximum operating temperature of +125 °c. Its accurate length is 3.1mm. The product is available in surface mount configuration. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
74AHC(T)1G14 Inverting Schmitt trigger(Technical Reference)
