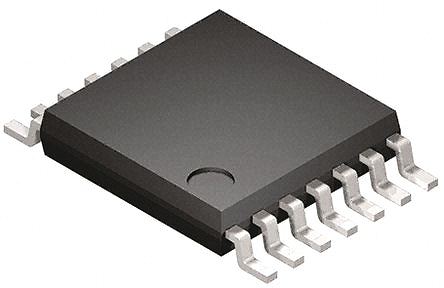

Nexperia 74LV14PW,112, Hex Schmitt Trigger Inverter, 14-Pin TSSOP

74LV14PW-112 Nexperia 74LV14PW,112, Hex Schmitt Trigger Inverter, 14-Pin TSSOP
Nexperia

Product Information

Maximum Low Level Output Current:
12mA
Maximum High Level Output Current:
-12mA
Dimensions:
5.1 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
48 ns @ 50 pF
Minimum Operating Supply Voltage:
1 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Logic Family:
LV
Height:
0.95mm
Width:
4.5mm
Length:
5.1mm
Package Type:
TSSOP
Number of Elements per Chip:
6
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+125 °C
Pin Count:
14
Maximum Operating Supply Voltage:
5.5 V
RoHs Compliant
Checking for live stock

This is Hex Schmitt Trigger Inverter 14-Pin TSSOP manufactured by Nexperia. The manufacturer part number is 74LV14PW,112. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. It carries schmitt trigger input type. It has a maximum operating temperature of +125 °c.
