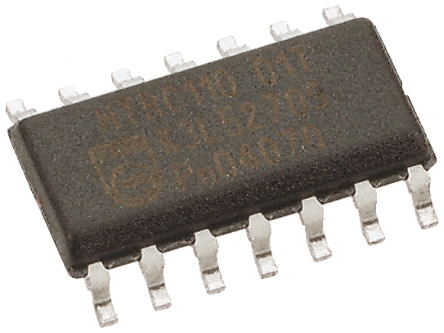

NXP 74LVT04D,112, Hex, TTL Inverter, 2.7 → 3.6 V, 14-Pin SOIC

74LVT04D-112 NXP 74LVT04D,112, Hex, TTL Inverter, 2.7 → 3.6 V, 14-Pin SOIC
Nexperia

Product Information

Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-20mA
Maximum Operating Supply Voltage:
3.6 V
Dimensions:
8.75 x 4 x 1.45mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
4.7 ns @ 50 pF
Minimum Operating Supply Voltage:
2.7 V
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Output Type:
TTL
Height:
1.45mm
Width:
4mm
Length:
8.75mm
Package Type:
SOIC
Logic Family:
LVT
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Maximum Operating Temperature:
+85 °C
Pin Count:
14
Number of Elements per Chip:
6
RoHs Compliant
Checking for live stock

This is NXP Hex TTL Inverter 2.7 → 3.6 V 14-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74LVT04D,112. The given dimensions of the product include 8.75 x 4 x 1.45mm. The product is available in surface mount configuration. Furthermore, it has attl output. In addition, the height is 1.45mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
74LVT04D 3.3V Hex Inverter Data Sheet(Technical Reference)
