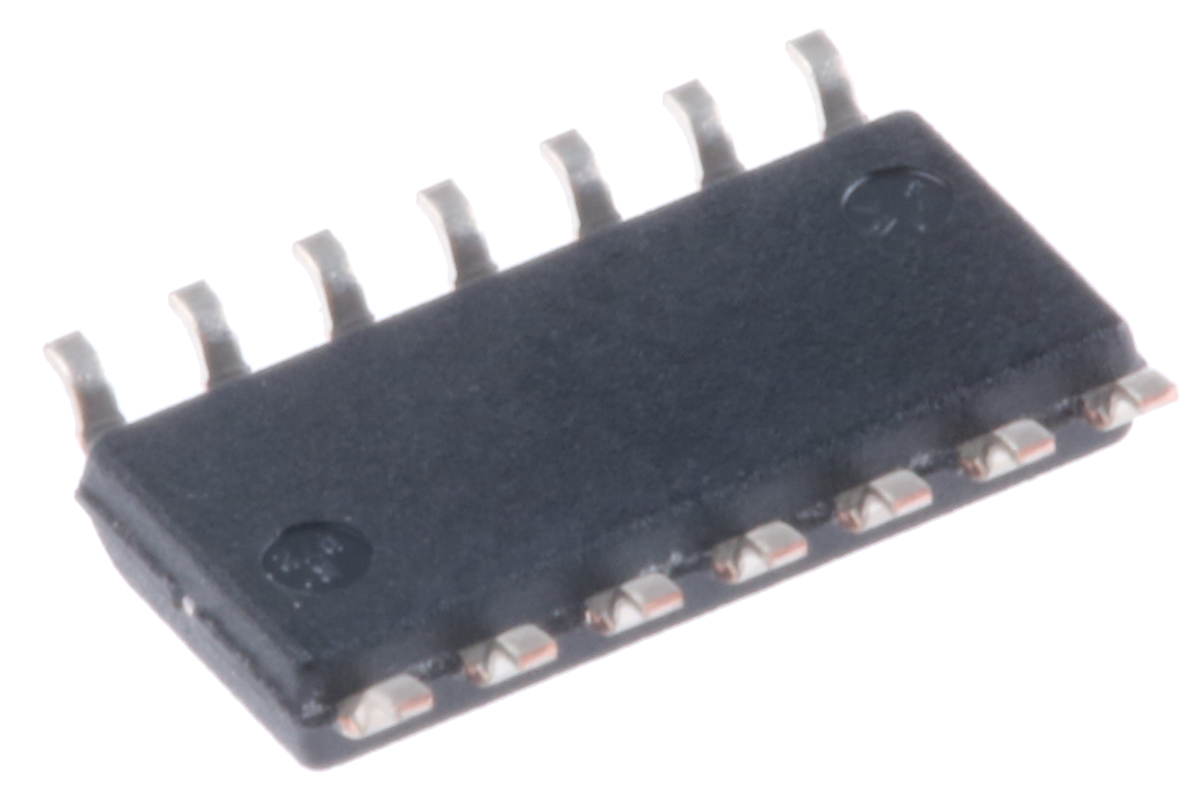

NXP HEF4069UBT,652, Hex Inverter, 3 → 15 V, 14-Pin SOIC

Enrgtech Part No: ET16800050
|
Manufacturer Part No:
HEF4069UBT,652
|
Manufacturer: Nexperia

(0)

Product Information

Maximum Low Level Output Current:

4.2mA

Maximum High Level Output Current:

-4.2mA

Dimensions:

8.75 x 4 x 1.45mm

Mounting Type:

Surface Mount

Maximum Propagation Delay Time @ Maximum CL:

25 ns @ 15 V, 40 ns @ 10 V, 90 ns @ 5 V

Minimum Operating Supply Voltage:

3 V

Logic Function:

Inverter

Propagation Delay Test Condition:

50pF

Logic Family:

4000

Height:

1.45mm

Width:

4mm

Length:

8.75mm

Checking for live stock

This is NXP Hex Inverter 3 → 15 V 14-Pin SOIC manufactured by Nexperia. The manufacturer part number is HEF4069UBT,652. The given dimensions of the product include 8.75 x 4 x 1.45mm. The product is available in surface mount configuration. In addition, the height is 1.45mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search HEF4069UBT,652 on website for other similar products.

We accept all major payment methods for all products including ET16800050. Please check your shopping cart at the time of order.

You can order Nexperia brand products with HEF4069UBT,652 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Inverters ICs category are shipped in lowest possible time.

You will get a confirmation email regarding your order of NXP HEF4069UBT,652, Hex Inverter, 3 → 15 V, 14-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on NXP HEF4069UBT,652, Hex Inverter, 3 → 15 V, 14-Pin SOIC.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800050 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number HEF4069UBT,652.

Yes. You can also search HEF4069UBT,652 on website for other similar products.

Yes. We ship HEF4069UBT,652 Internationally to many countries around the world.
