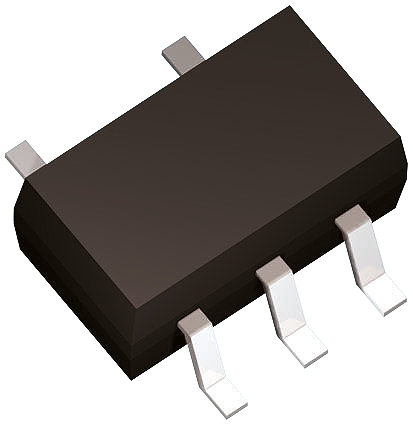

NXP 74HC1G14GV,125 Schmitt Trigger Inverter, 2 → 6 V, 5-Pin SC-74A

74HC1G14GV-125 NXP 74HC1G14GV,125 Schmitt Trigger Inverter, 2 → 6 V, 5-Pin SC-74A
74HC1G14GV-125 NXP 74HC1G14GV,125 Schmitt Trigger Inverter, 2 → 6 V, 5-Pin SC-74A
Nexperia

Product Information

Maximum Low Level Output Current:
2.6mA
Maximum High Level Output Current:
-2mA
Dimensions:
3.1 x 1.7 x 1mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
190 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
50pF
Output Type:
Single Ended
Height:
1mm
Width:
1.7mm
Length:
3.1mm
Package Type:
SC-74A
Logic Family:
HC
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+125 °C
Pin Count:
5
Maximum Operating Supply Voltage:
6 V
RoHs Compliant
Checking for live stock

This is NXP Schmitt Trigger Inverter 2 → 6 V 5-Pin SC-74A manufactured by Nexperia. The manufacturer part number is 74HC1G14GV,125. The given dimensions of the product include 3.1 x 1.7 x 1mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. Furthermore, it has asingle ended output. In addition, the height is 1mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. It carries schmitt trigger input type. It has a maximum operating temperature of +125 °c.

pdf icon
74HC(T)1G14 Inverting Schmitt trigger(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
