Maximum Low Level Output Current:
2.6mA
Maximum High Level Output Current:
-2.6mA
Dimensions:
2 x 1.25 x 0.9mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
46.3 ns @ 30 pF
Minimum Operating Supply Voltage:
0.9 V
Minimum Operating Temperature:
-40 °C
Logic Function:
Inverter
Propagation Delay Test Condition:
30pF
Logic Family:
LVCMOS
Height:
0.9mm
Width:
1.25mm
Length:
2mm
Package Type:
S70
Number of Elements per Chip:
1
Input Type:
Schmitt Trigger
Schmitt Trigger Input:
Yes
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Maximum Operating Supply Voltage:
3.6 V
Number of Inputs:
1
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Quiescent (Max):
900 nA
Operating Temperature:
-40°C ~ 85°C

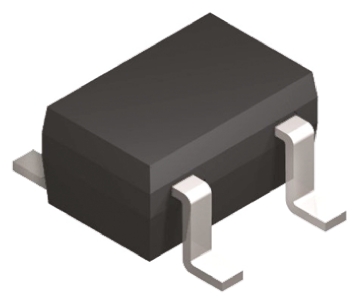

Package / Case:
5-TSSOP, SC-70-5, SOT-353
Input Logic Level - Low:
0.1V ~ 0.6V
Input Logic Level - High:
0.6V ~ 2.6V
REACH Status:
REACH Unaffected
Max Propagation Delay @ V, Max CL:
9.2ns @ 3.3V, 30pF
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Circuits:
1
Features:
Schmitt Trigger
Mounting Type:
Surface Mount
Series:
7SP
Logic Type:
Inverter
Supplier Device Package:
SC-70-5
Voltage - Supply:
0.9V ~ 3.6V
Current - Output High, Low:
2.6mA, 2.6mA
Base Product Number:
7SP14
ECCN:
EAR99
