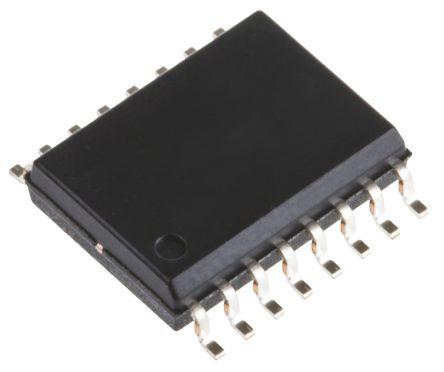

onsemi MC14536BDWG Quad-Bit Latch Decoder, Pulse, 16-Pin SOIC

Enrgtech Part No: ET21530917
|
Manufacturer Part No:
MC14536BDWG
|
Manufacturer: Onsemi

MC14536BDWG onsemi Quad-Bit Latch Decoder, Pulse, 16-Pin SOIC

(0)

Product Information

Width:

7.6mm

Height:

2.4mm

Length:

10.45mm

Pin Count:

Set/Reset:

Yes

Dimensions:

10.45 x 7.6 x 2.4mm

Output Type:

Pulse

Package Type:

SOIC

Mounting Type:

Surface Mount

Number of Bits:

Latching Element:

Decoder

Automotive Standard:

AEC-Q100

282 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 0.68

£ 31.96

470

£ 0.49

£ 230.30

940

£ 0.42

£ 394.80

Mfr Part No:

MC14536BDWG

Seller:

Onsemi

Origin:

Warranty:

Manufacturer

Data Code:

ET21530917

Order Today!

From: United Kingdom

Est Ship Date: 16 Jul, 2026

Est Fastest Delivery: 17 Jul, 2026

Quantity Quantity

This is onsemi Quad-Bit Latch Decoder Pulse 16-Pin SOIC manufactured by Onsemi. The manufacturer part number is MC14536BDWG. Furthermore, the product is 7.6mm wide. In addition, the height is 2.4mm. Its accurate length is 10.45mm. The given dimensions of the product include 10.45 x 7.6 x 2.4mm. Furthermore, it has apulse output. The product is available in surface mount configuration. The product consists of 4 bits. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -55 °c.

A700000006387138.pdf(RS)
