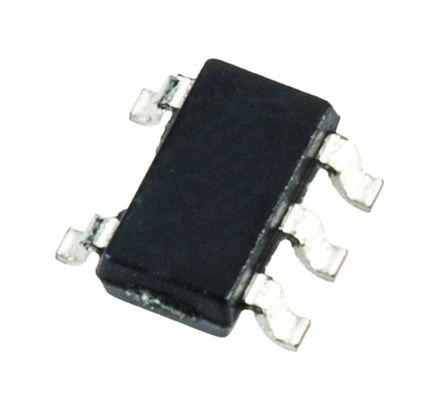

Texas Instruments 74LVC1G125DRLR Buffer & Line Driver, 3-State, 5-Pin SOT-553

74LVC1G125DRLR Texas Instruments Buffer & Line Driver, 3-State, 5-Pin SOT-553
Texas Instruments

Product Information

Polarity:
Non-Inverting
Maximum Low Level Output Current:
32mA
Dimensions:
1.6 x 1.2 x 0.55mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
4.5 ns @ 3.3 V
Number of Channels per Chip:
1
Logic Function:
Buffer, Line Driver
Output Type:
3 State
Maximum High Level Output Current:
-32mA
Package Type:
SOT-553
Logic Family:
LVC
Input Type:
Single Ended
IC Type:
Buffer & Line Driver
Maximum Operating Supply Voltage:
5.5 V
Minimum Operating Supply Voltage:
1.65 V
Pin Count:
5
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Buffer & Line Driver 3-State 5-Pin SOT-553 manufactured by Texas Instruments. The manufacturer part number is 74LVC1G125DRLR. The given dimensions of the product include 1.6 x 1.2 x 0.55mm. The product is available in surface mount configuration. Furthermore, it has a3 state output. It carries single ended input type.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 74LVC1G125DRLR on website for other similar products.
We accept all major payment methods for all products including ET14015038. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with 74LVC1G125DRLR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Line Interface ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments 74LVC1G125DRLR Buffer & Line Driver, 3-State, 5-Pin SOT-553. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments 74LVC1G125DRLR Buffer & Line Driver, 3-State, 5-Pin SOT-553.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14015038 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number 74LVC1G125DRLR.
Yes. You can also search 74LVC1G125DRLR on website for other similar products.
Yes. We ship 74LVC1G125DRLR Internationally to many countries around the world.
